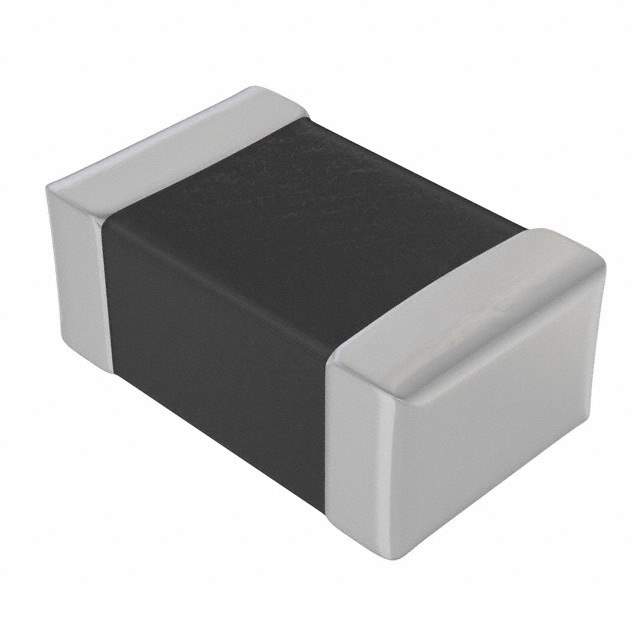

AIML-0805-220K-T Real Image
Same model may have multiple batches, images only for reference.

AIML-0805-220K-T

Part No AIML-0805-220K-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 22UH 5MA 1.1 OHM SMD / 22 µH Shielded Multilayer Inductor 5 mA 1.1Ohm Max 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIML-0805
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 22 µH
Tolerance ±10%
Current Rating (Amps) 5 mA
Shielding Shielded
DC Resistance (DCR) 1.1Ohm Max
Q @ Freq 40 @ 1MHz
Frequency - Self Resonant 16MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.041" (1.05mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-11629-1,AIML-0805-220K-T-ND,535-11629-2,535-11629-6,AIML0805220KT
Standard Package 4,000
Win Source Part Number 1071018-AIML-0805-220K-T
Ultra Librarian 3D Model Ultra Librarian AIML-0805-220K-T CAD Model

Description

The AIML-0805-220K-T is a high-popularity electronic component that has a limited supply and demand status.

  • Shielding: shielded
  • Inductance: 22 µH
  • Tolerance: ±10%
  • Height: 0.041" (1.05mm)
  • Mounting: surface-mount device (SMD)
  • Material: ferrite
  • DC Resistance (DCR): 1.1Ohm Max
