Same model may have multiple batches, images only for reference.

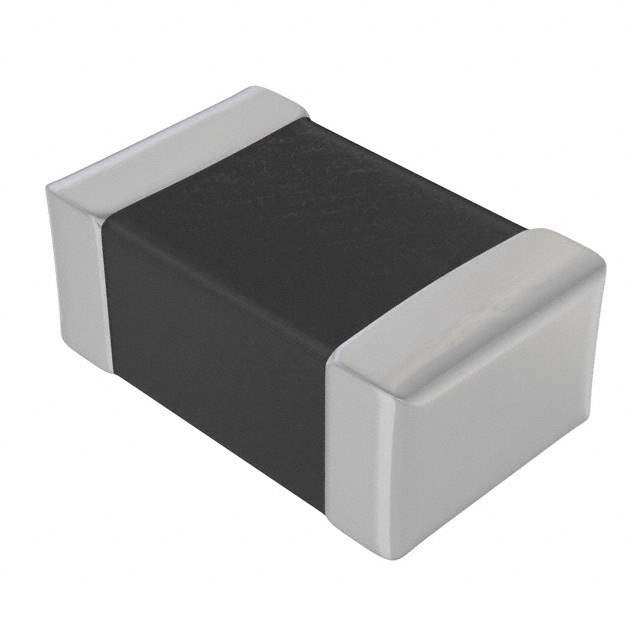

AIML-0805-1R2K-T Real Image
Same model may have multiple batches, images only for reference.

AIML-0805-1R2K-T

Part No AIML-0805-1R2K-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 1.2UH 50MA 500MOHM SMD / 1.2 µH Shielded Multilayer Inductor 50 mA 500mOhm Max 0805 (2012 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIML-0805
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 1.2 µH
Tolerance ±10%
Current Rating (Amps) 50 mA
Shielding Shielded
DC Resistance (DCR) 500mOhm Max
Q @ Freq 45 @ 10MHz
Frequency - Self Resonant 65MHz
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 10 MHz
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.041" (1.05mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-11626-2,535-11626-1,535-11626-6,AIML-0805-1R2K-T-ND,AIML08051R2KT
Standard Package 4,000
Win Source Part Number 1126277-AIML-0805-1R2K-T
Ultra Librarian 3D Model Ultra Librarian AIML-0805-1R2K-T CAD Model

Description

The AIML-0805-1R2K-T is a multilayer shielded fixed inductor from Abracon LLC.

  • Inductance: 1.2 μH
  • Tolerance: ±10%
  • Q @ Freq: 45 @ 10MHz
  • Frequency - Self Resonant: 65MHz
  • DC Resistance (DCR): 500mOhm Max
  • Shielding: Shielded
  • Height - Seated (Max): 0.041" (1.05mm)
  • Size / Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Operating Temperature: -55°C ~ 125°C
  • Mounting Type: Surface Mount, SMD
  • Core Material: Ferrite
  • Package: Tape & Reel (TR)
  • Standard Package: 4,000
