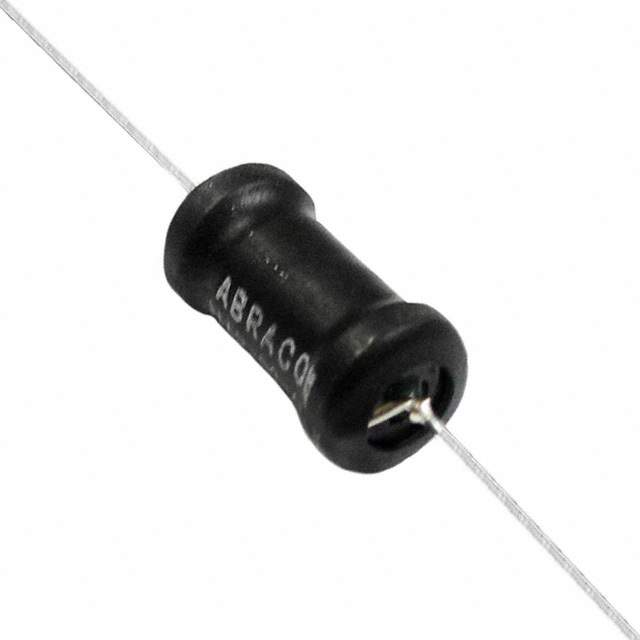

AIAP-03-222K Real Image
Same model may have multiple batches, images only for reference.

AIAP-03-222K

Part No AIAP-03-222K
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 2.2MH 580MA 2 OHM TH / 2.2 mH Unshielded Wirewound Inductor 580 mA 2Ohm Max Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Abracon LLC
Packaging Bulk
Type Wirewound
Inductance 2.2 mH
Tolerance ±10%
Current Rating (Amps) 580 mA
Shielding Unshielded
DC Resistance (DCR) 2Ohm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Through Hole
Case / Package Axial
Size / Dimension 0.449" Dia x 0.902" L (11.40mm x 22.90mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number -AIAP-03-222K,-AIAP-03-222-K,AIAP-03-222-K-ND,AIAP03222K,-AIAP-03-222-K-ND,AIAP-03-222-K
Standard Package 64
Win Source Part Number 1327467-AIAP-03-222K
Ultra Librarian 3D Model Ultra Librarian AIAP-03-222K CAD Model

Description

The Abracon LLC wirewound fixed inductor is a high-quality component designed for use in a variety of electronic applications.

  • Diameter: 0.449 inches
  • Length: 0.902 inches
  • Inductance: 2.2 mH
  • Tolerance: ±10%
  • Shielding: Unshielded
  • Temperature Range: -55°C to 125°C
  • DC Resistance: 2 Ohm Max
  • Current Rating: 580 mA
  • Packaging: Bulk
  • Case / Package: Axial
  • ECCN: EAR99
  • REACH: Unaffected
