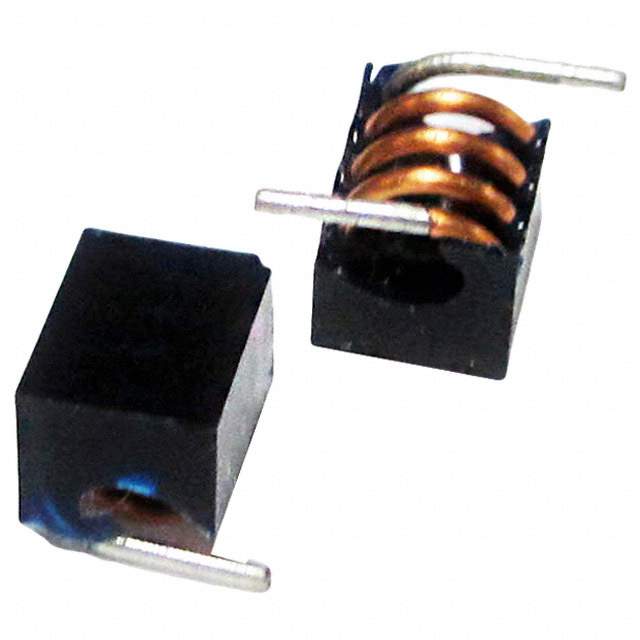

AIAC-1512C-12N5J-T Real Image
Same model may have multiple batches, images only for reference.

AIAC-1512C-12N5J-T

Part No AIAC-1512C-12N5J-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 12.5NH 4.3A 3 MOHM SMD / 12.5 nH Unshielded Wirewound Inductor 4.3 A 3mOhm Max Nonstandard
Datasheet
AIAC-1512C-12N5J-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIAC-1512C
Package Tape & Reel
Type Wirewound
Material - Core Air
Inductance 12.5 nH
Tolerance ±5%
Current Rating (Amps) 4.3 A
Shielding Unshielded
DC Resistance (DCR) 3mOhm Max
Q @ Freq 137 @ 150MHz
Frequency - Self Resonant 3GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 150 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.130" L x 0.098" W (3.30mm x 2.50mm)
Height - Seated (Max) 0.110" (2.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-11985-1,535-11985-2,AIAC1512C12N5JT,535-11985-6
Standard Package 2,000
Win Source Part Number 1000052-AIAC-1512C-12N5J-T
Ultra Librarian 3D Model Ultra Librarian AIAC-1512C-12N5J-T CAD Model

Description

The AIAC-1512C-12N5J-T is a wirewound inductor from Abracon LLC.

  • Inductance: 12.5 nH
  • Tolerance: ±5%
  • Shielding: Shielded
  • Package: Tape and Reel
  • Height: 0.110" (2.80mm)
  • Voltage Supply: Up to 4.3A
  • Temperature Range: -40°C to 125°C
  • DC Resistance: Up to 3mOhm
  • Series: AIAC-1512C
  • Ideal for: Use in various applications, such as in power supplies, DC-DC converters, and voltage regulators
