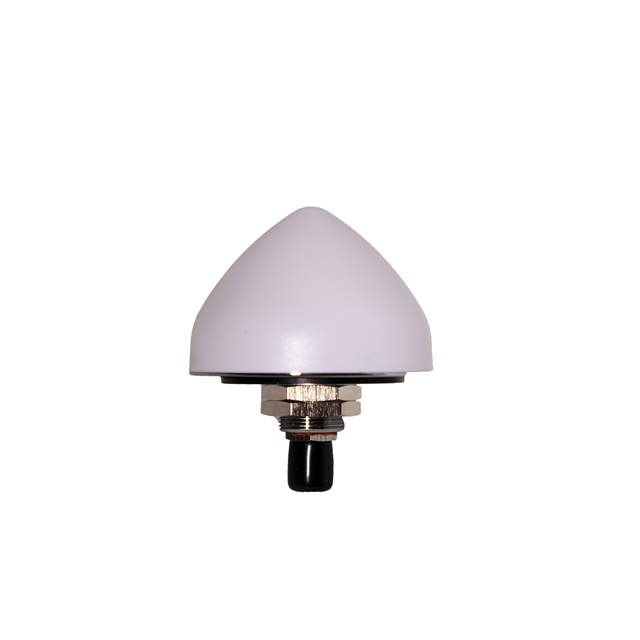

AEACMK0660746-SG4 Real Image
Same model may have multiple batches, images only for reference.

AEACMK0660746-SG4

Part No AEACMK0660746-SG4
Manufacturer Abracon LLC
Catalog RF Antennas
Description RF ANT 1561/1575/1602MHZ EXT / 1.5815GHz Beidou, Galileo, GLONASS, GNSS, GPS Dome RF Antenna 1.561GHz ~ 1.602GHz 5dBic TNC Panel Mount
Datasheet
AEACMK0660746-SG4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Abracon LLC
Series AEAC
Package Bulk
RF Family/Standard Navigation
Frequency Group UHF (1GHz ~ 2GHz)
Frequency (Center/Band) 1.5815GHz
Frequency Range 1.561GHz ~ 1.602GHz
Antenna Type Dome
Number of Bands 1
VSWR 1.5, 2
Gain 5dBic
Features LNA
Termination TNC
Ingress Protection IP67
Mounting Type Panel Mount
Height (Max) 1.811" (46.00mm)
Applications Beidou, Galileo, GLONASS, GNSS, GPS
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8529.10.4040
Other Names 535-AEACMK0660746-SG4
Standard Package 50
Win Source Part Number 1066482-AEACMK0660746-SG4
Ultra Librarian 3D Model Ultra Librarian AEACMK0660746-SG4 CAD Model

Description

The AEACMK0660746-SG4 electronic component is a product of Abracon LLC.

  • Series: AEAC
  • Category: RF/IF and RFID>RF Antennas
  • Features: LNA and TNC termination
  • Package: Bulk
  • Ingress Protection: IP67
  • Applications: Beidou, Galileo, GLONASS, GNSS, and GPS
  • Standard Package: 50
  • Frequency Range: 1.561GHz ~ 1.602GHz
  • Height: 1.811" (46.00mm)
  • Frequency Group: UHF (1GHz ~ 2GHz)
  • Antenna Type: Dome
  • Band: One Band
  • VSWR: 1.5, 2
  • Gain: 5dBic
  • RF Family/Standard: Navigation
  • Mounting Type: Panel Mount
  • Alternative Parts (Cross-Reference): AEACMK0660746-SG4AEACMK0660746SG4
  • MSL Level: Not Applicable
  • REACH Status: REACH unaffected
  • HTSUS: 8529.10.4040
