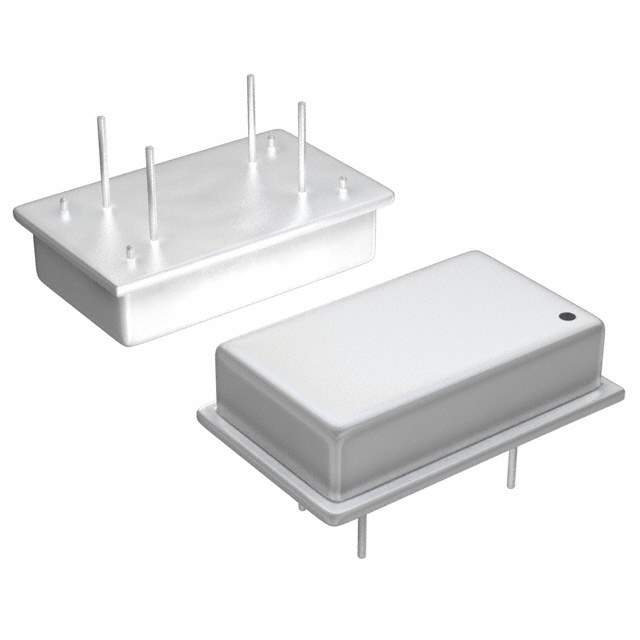

ACOL-25.000MHZ-EK Real Image
Same model may have multiple batches, images only for reference.

ACOL-25.000MHZ-EK

Part No ACOL-25.000MHZ-EK
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC XO 25.000MHZ TTL PC PIN
Datasheet
ACOL-25.000MHZ-EK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ACOL
Packaging Tube
Type XO (Standard)
Frequency 25MHz
Function Enable/Disable
Output HCMOS, TTL
Operating Supply Voltage 3.3V
Frequency Stability ±30ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 30mA
Mounting Style Through Hole
Package 14-DIP, 4 Leads (Full Size, Metal Can)
Dimension 0.795" L x 0.496" W (20.20mm x 12.60mm)
Height - Seated (Maximum) 0.200" (5.08mm)
Win Source Part Number 766925-ACOL-25.000MHZ-EK
Popularity Medium
Supply and Demand Status Limited
Family Name ACOL
Introduction Date May 09, 2002
ECCN EAR99
Country of Origin Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian ACOL-25.000MHZ-EK CAD Model

Description

The ACOL-25.000MHZ-EK XO (Standard) oscillator is a high-quality electronic component manufactured by Abracon LLC.

  • Frequency: 25 MHz
  • Frequency Stability: ±30ppm
  • Output: HCMOS, TTL
  • Maximum Supply Current: 30mA
  • Package/Case: 14-DIP, 4 leads (full size, metal can)
  • Mounting Type: Through Hole
  • Temperature Range: -20°C to 70°C
  • Halogen Free: Yes
  • ECCN: EAR99
  • Applications: Crystals, Oscillators, Resonators
