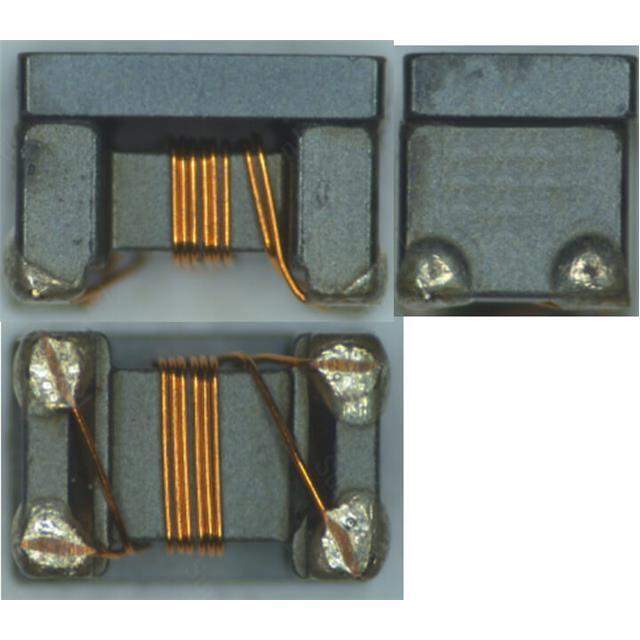

ACMS-Q3225-220-T Real Image
Same model may have multiple batches, images only for reference.

ACMS-Q3225-220-T

Part No ACMS-Q3225-220-T
Manufacturer Abracon LLC
Catalog Common Mode Chokes
Description CMC 22UH 0.25A 500M / 22 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 1.1 kOhms @ 10 MHz 250mA DCR 500mOhm
Datasheet
ACMS-Q3225-220-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Abracon LLC
Series ACMS-Q3225
Package Tape & Reel (TR)
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 1.1 kOhms @ 10 MHz
Inductance @ Frequency 22 µH @ 100 kHz
Current Rating (Max) 250mA
DC Resistance (DCR) (Max) 500mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -55°C ~ 150°C
Ratings AEC-Q200
Mounting SMD (SMT)
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max) 0.098" (2.50mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 535-ACMS-Q3225-220-TTR,2022-04-05
Standard Package 2,000
Win Source Part Number 1095821-ACMS-Q3225-220-T
Ultra Librarian 3D Model Ultra Librarian ACMS-Q3225-220-T CAD Model

Description

The ACMS-Q3225-220-T is a common mode choke filter manufactured by Abracon LLC.

  • Voltage Rating: 80V DC
  • Maximum Current Rating: 250mA
  • Filter Type: Signal Line
  • Impedance: 1.1 kOhms @ 10 MHz
  • Inductance: 22 µH @ 100 kHz
  • DC Resistance (DCR): 500mOhm max
  • Package: Horizontal, 4 PC pad
  • Mounting: SMD (SMT)
  • Rated: AEC-Q200
  • Temperature Range: -55°C to 150°C
  • Standard Package: 2000 units
