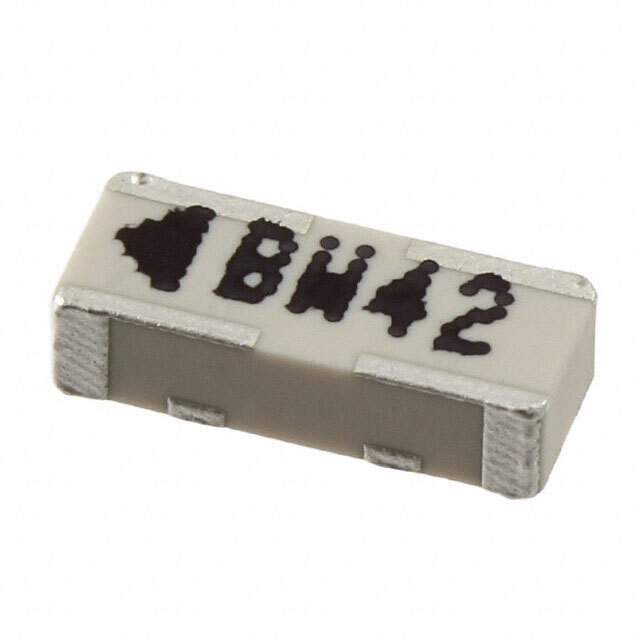

ACA-103-T Real Image
Same model may have multiple batches, images only for reference.

ACA-103-T

Part No ACA-103-T
Manufacturer Abracon LLC
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Datasheet
ACA-103-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Features 2.4GHz, 5.5GHz Bluetooth, WLAN Chip RF Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz -1.37dBi Solder Surface Mount
Manufacturer Abracon LLC
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.4040
Other Part Number 535-12400-1, 535-12400-2, 535-12400-6
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 909184-ACA-103-T
Ultra Librarian 3D Model Ultra Librarian ACA-103-T CAD Model

Description

It features 2.4GHz, 5.5GHz Bluetooth, WLAN Chip RF Antenna 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz -1.37dBi Solder Surface Mount and comes in a reel - TR package with surface mount mounting.

  • Frequencies: 2.4GHz, 5.5GHz
  • Applications: Bluetooth, WLAN
  • Frequency Range: 2.4GHz ~ 2.485GHz, 5.15GHz ~ 5.825GHz
  • Gain: -1.37dBi
  • Termination: Solder
  • Mounting: Surface Mount
  • Packaging: Reel - TR
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8529.10.4040
  • Other part numbers: 535-12400-1, 535-12400-2, and 535-12400-6
