Same model may have multiple batches, images only for reference.

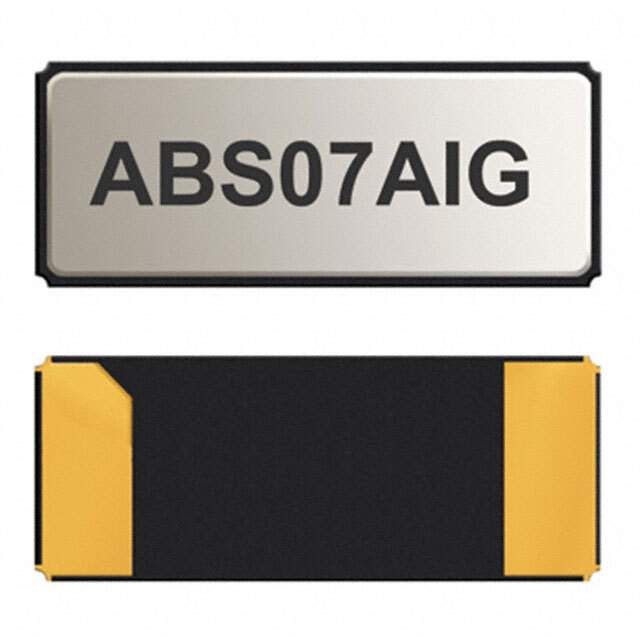

ABS07AIG-32.768KHZ-1-T Real Image
Same model may have multiple batches, images only for reference.

ABS07AIG-32.768KHZ-1-T

Part No ABS07AIG-32.768KHZ-1-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±10ppm Crystal 12.5pF 80 kOhms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS07AIG
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±10ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 80 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 9,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1352260-ABS07AIG-32.768KHZ-1-T
Ultra Librarian 3D Model Ultra Librarian ABS07AIG-32.768KHZ-1-T CAD Model

Description

The ABS07AIG series is a kHz Crystal (Tuning Fork) crystal that is designed for use in automotive applications.

  • Package: Surface Mount 2-SMD, no lead
  • Size: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Seated Height: 0.035" (0.90mm)
  • Frequency Output: 32.768 kHz
  • Frequency Tolerance: ±10ppm
  • ESR: 80 kOhms
  • Load Capacitance: 12.5pF
  • Operating Temperature: -40°C ~ 125°C
