Same model may have multiple batches, images only for reference.

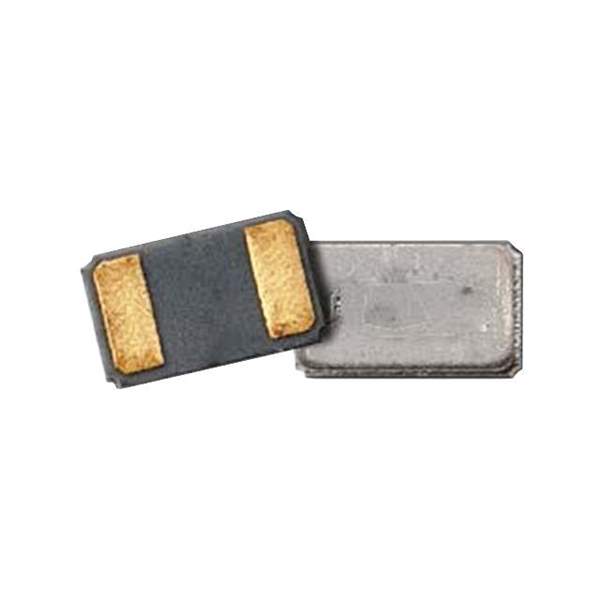

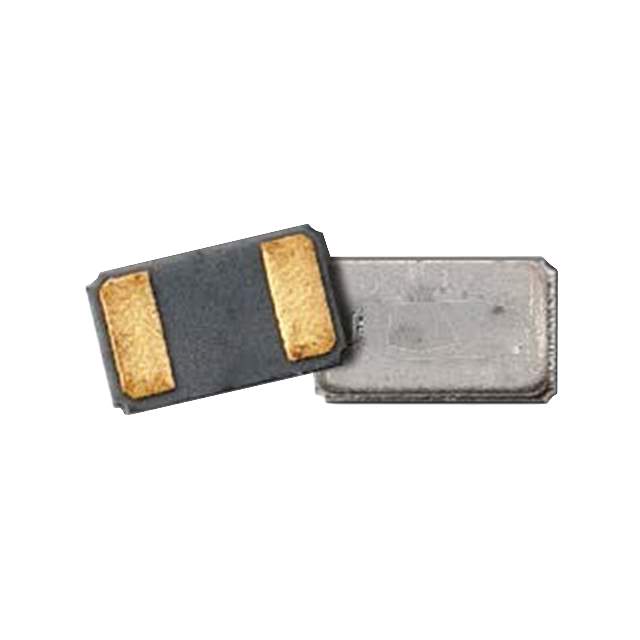

ABS06-32.768KHZ-9-T Real Image
Same model may have multiple batches, images only for reference.

ABS06-32.768KHZ-9-T

Part No ABS06-32.768KHZ-9-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 9PF SMD / 32.768 kHz ±20ppm Crystal 9pF 90 kOhms 2-SMD, No Lead
Datasheet
ABS06-32.768KHZ-9-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS06
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 9pF
ESR (Equivalent Series Resistance) 90 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Other Names 535-10246-6,ABS0632768KHZ9T,535-10246-2,535-10246-1
Standard Package 3,000
Win Source Part Number 976986-ABS06-32.768KHZ-9-T
Ultra Librarian 3D Model Ultra Librarian ABS06-32.768KHZ-9-T CAD Model

Description

The Abracon LLC part number 976986-ABS06-32.768KHZ-9-T is a kHz crystal (tuning fork) with a frequency of 32.768 kHz and a load capacitance of 9pF.

  • Frequency: 32.768 kHz
  • Load Capacitance: 9pF
  • Package: Tape & Reel
  • Mounting: SMD (SMT)
  • Standard Package: 3,000
  • MSL Level: 1 (unlimited)
