Same model may have multiple batches, images only for reference.

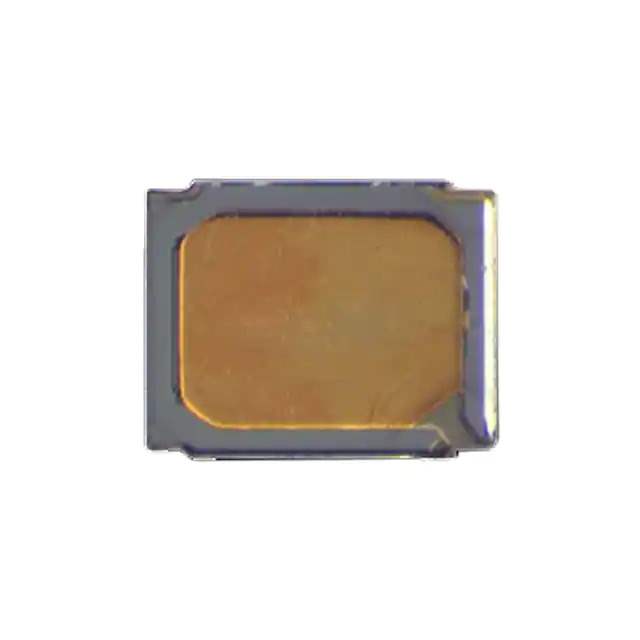

ABS04W-32.768KHZ-4-B2-T5 Real Image
Same model may have multiple batches, images only for reference.

ABS04W-32.768KHZ-4-B2-T5

Part No ABS04W-32.768KHZ-4-B2-T5
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 4PF SMD / 32.768 kHz ±20ppm Crystal 4pF 130 kOhms 4-SMD, No Lead
Datasheet
ABS04W-32.768KHZ-4-B2-T5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS04W
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 4pF
ESR (Equivalent Series Resistance) 130 kOhms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.047" L x 0.039" W (1.20mm x 1.00mm)
Height - Seated (Max) 0.014" (0.35mm)
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 859189-ABS04W-32.768KHZ-4-B2-T5
Ultra Librarian 3D Model Ultra Librarian ABS04W-32.768KHZ-4-B2-T5 CAD Model

Description

The ABS04W-32.768KHZ-4-B2-T5 is a kHz Crystal (Tuning Fork) from the ABS04W series.

  • Applications: Crystals, Oscillators, and Resonators
  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 4pF
  • Mounting: Surface mountable
  • Package: 4-SMD, no lead
  • Temperature Range: -20°C to 70°C
  • Height: 0.014" (0.35mm)
  • Size: 0.047" L x 0.039" W (1.20mm x 1.00mm)
  • Manufacturer: Abracon LLC
  • Product Status: Active
