Same model may have multiple batches, images only for reference.

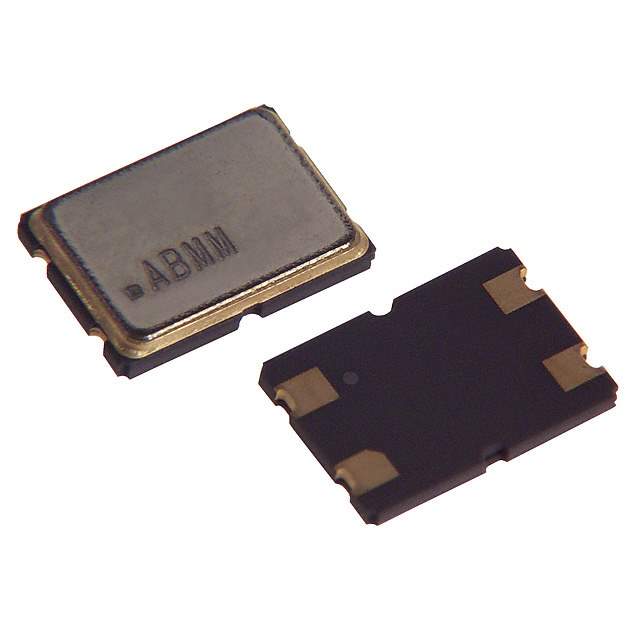

ABMM-24.576MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABMM-24.576MHZ-B2-T

Part No ABMM-24.576MHZ-B2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.5760MHZ 18PF SMD / 24.576 MHz ±20ppm Crystal 18pF 40 Ohms 4-SMD, No Lead
Datasheet
ABMM-24.576MHZ-B2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABMM
Package Tape & Reel
Type MHz Crystal
Frequency 24.576 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-9160-2,535-9160-1,ABMM24576MHZB2T,300-9160-2,300-9160-2-ND,300-9160-1,300-9160-1-ND,535-9160-6,Q3573294N
Standard Package 1,000
Win Source Part Number 1230875-ABMM-24.576MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABMM-24.576MHZ-B2-T CAD Model

Description

The ABMM-24.576MHZ-B2-T is a high popularity product manufactured by Abracon LLC.

  • Frequency: 24.576 MHz
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±50ppm
  • Package: Tape and Reel
  • Standard Package: 1000
  • Operating Temperature Range: -20°C to 70°C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
