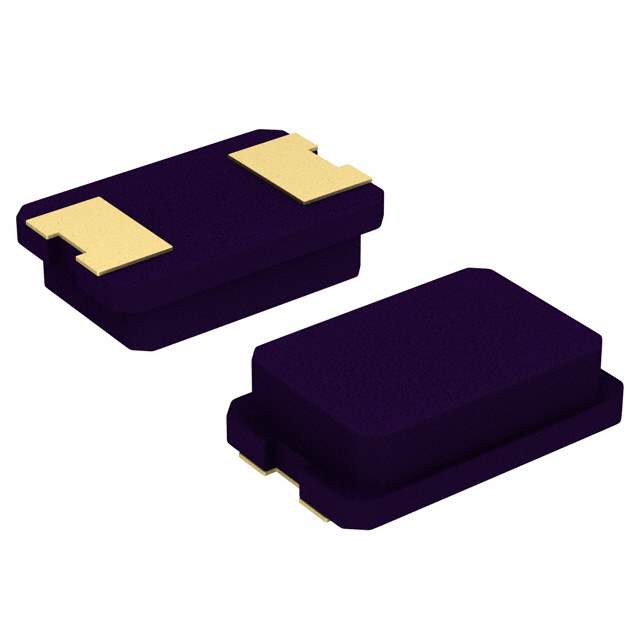

ABM3-27.000MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-27.000MHZ-B2-T

Part No ABM3-27.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 27.0000MHZ 18PF SMD / 27 MHz ±20ppm Crystal 18pF 30 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3
Package Tape & Reel
Type MHz Crystal
Frequency 27 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-9109-1,300-9109-2,535-9109-2,ABM327000MHZB2T,300-9109-2-ND,535-9109-6,300-9109-1,300-9109-1-ND
Standard Package 1,000
Win Source Part Number 993672-ABM3-27.000MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABM3-27.000MHZ-B2-T CAD Model

Description

The Abracon LLC 993672-ABM3-27.000MHZ-B2-T is a part of the ABM3 series.

  • Series: ABM3
  • Packaging: Tape and reel
  • Height: 0.051" (1.30mm)
  • Standard Package: 1000
  • Mounting: Surface mount
  • Frequency: 27 MHz
  • ESR: 30 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Package/Case: 2-SMD, No Lead
  • Temperature Range: -20°C ~ 70°C
  • Category: Crystals, oscillators, and resonators
  • ECCN: EAR99
  • MSL Level: Not applicable
  • REACH Status: REACH Affected
  • HTSUS: 8541.60.0060
  • Other Names: 535-9109-1, 300-9109-2, 535-9109-2, ABM327000MHZB2T, 300-9109-2-ND, 535-9109-6, 300-9109-1, and 300-9109-1-ND
