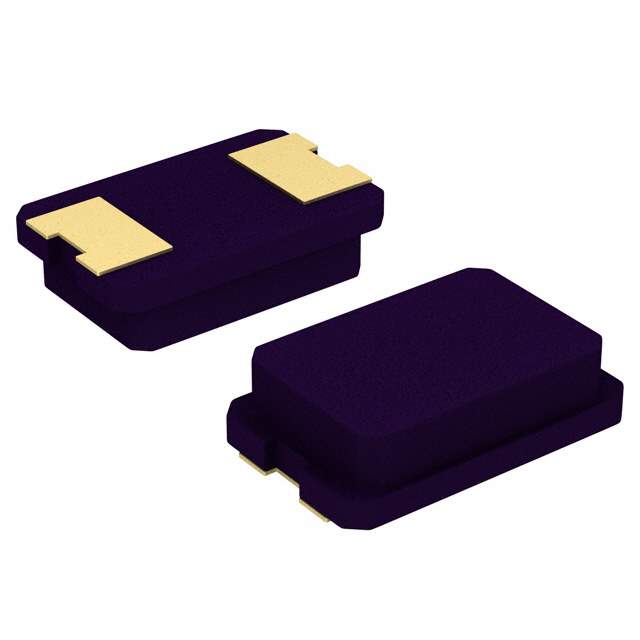

ABM3-10.000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-10.000MHZ-D2Y-T

Part No ABM3-10.000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 10.0000MHZ 18PF SMD / 10 MHz ±20ppm Crystal 18pF 60 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer Abracon LLC
Packaging Reel - TR
Type MHz Crystal
Frequency 10 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Case / Package 2-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number ABM3100000MHZD2YT,535-10631-2,535-10631-1,ABM310.000MHZD2YT,ABM3-10.0000MHZ-D2Y-T,535-10631-6
Standard Package 1,000
Win Source Part Number 1328362-ABM3-10.000MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABM3-10.000MHZ-D2Y-T CAD Model

Description

The ABM3 series crystal from Abracon LLC is a surface mount component used in various electronic circuits.

  • Frequency: 10 MHz
  • Crystal Type: MHz crystal
  • Package: reel - TR
  • Standard Package: 1,000
  • Height: 0.051 inches (1.30mm)
  • ESR (Equivalent Series Resistance): 60 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Operating Temperature: -40°C to 85°C
  • Dimensions: 0.197 inches L x 0.126 inches W (5.00mm x 3.20mm)
