Same model may have multiple batches, images only for reference.

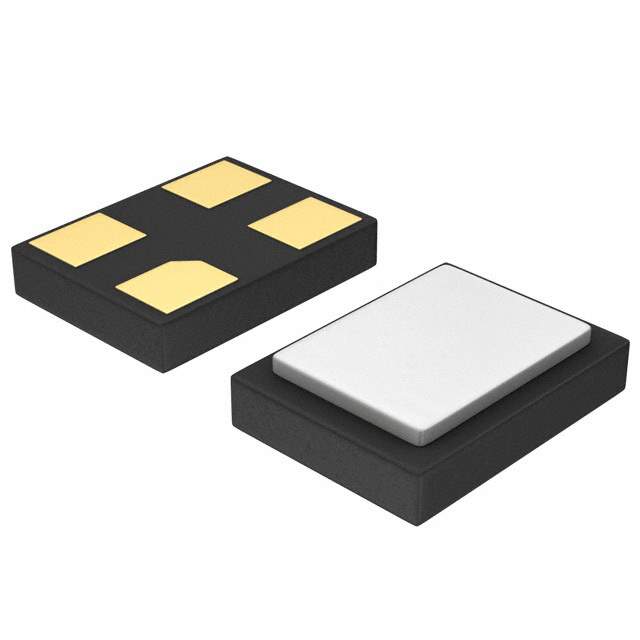

ABM12-32.000MHZ-B2X-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM12-32.000MHZ-B2X-T3

Part No ABM12-32.000MHZ-B2X-T3
Manufacturer Abracon LLC
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM12
Package Tape & Reel
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.018" (0.45mm)
Other Names ABM12-32.000MHZ-B2X-T,535-10256-6,ABM1232000MHZB2XT3,535-10256-2,535-10256-1
Standard Package 3,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1285021-ABM12-32.000MHZ-B2X-T3
Ultra Librarian 3D Model Ultra Librarian ABM12-32.000MHZ-B2X-T3 CAD Model

Description

The Abracon LLC ABM12-32.000MHZ-B2X-T3 is a MHz crystal component with a frequency of 32MHz and a frequency tolerance of ±20ppm.

  • Frequency: 32MHz
  • Frequency Tolerance: ±20ppm
  • Equivalent Series Resistance: 200 Ohms
  • Load Capacitance: 8pF
  • Mounting Type: SMD
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -20°C to 70°C
