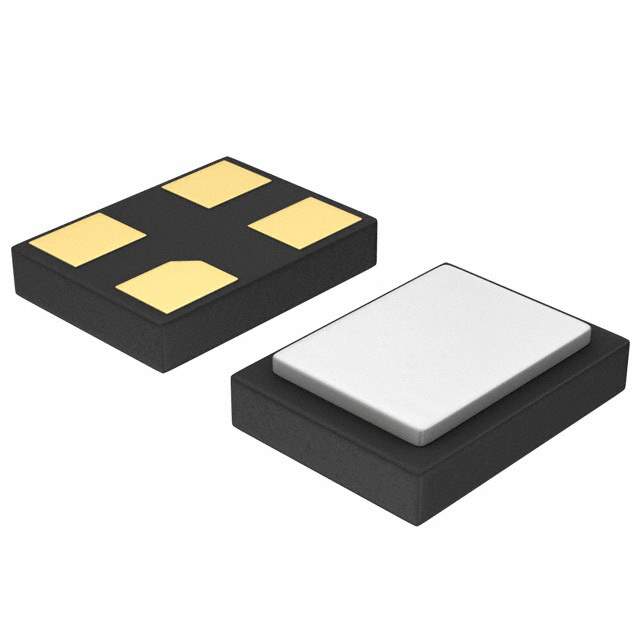

ABM12-26.000MHZ-B2X-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM12-26.000MHZ-B2X-T3

Part No ABM12-26.000MHZ-B2X-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 26.0000MHZ 8PF SMD / 26 MHz ±20ppm Crystal 8pF 200 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM12
Package Tape & Reel
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height - Seated (Max) 0.018" (0.45mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-10252-2,535-10252-1,ABM12-26.000MHZ-B2X-T,Q8492252,ABM1226000MHZB2XT3,535-10252-6
Standard Package 3,000
Win Source Part Number 1035255-ABM12-26.000MHZ-B2X-T3
Ultra Librarian 3D Model Ultra Librarian ABM12-26.000MHZ-B2X-T3 CAD Model

Description

The ABM12 series MHz crystal is a high-quality electronic component manufactured by Abracon LLC.

  • Frequency: 26 MHz
  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 200 Ohms
  • Load Capacitance: 8pF
  • Operating Mode: fundamental
  • Mounting Method: SMD (SMT)
  • Temperature Range: -20°C to 70°C
  • Package/Case: 4-SMD, No Lead
  • Dimensions: 0.063" L x 0.047" W (1.60mm x 1.20mm)
  • Packaging: tape & reel
  • Standard Package: 3,000 units
  • Alternative Parts (cross-reference): 416F26022CKR, 416F26022IKR, ECS-260-8-47-JTN-TR, ABM12-27.000MHZ-B2X-T3, 416F24022IKR, and ECS-240-8-47-JTN-TR
