Same model may have multiple batches, images only for reference.

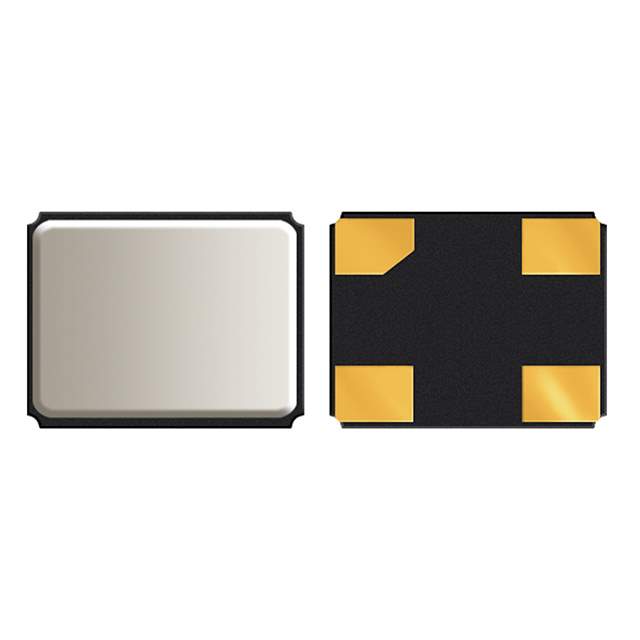

ABM10-24.000MHZ-E20-T Real Image
Same model may have multiple batches, images only for reference.

ABM10-24.000MHZ-E20-T

Part No ABM10-24.000MHZ-E20-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.0000MHZ 10PF SMD / 24 MHz ±20ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
ABM10-24.000MHZ-E20-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 300-9093-1-ND,535-9093-6,300-9093-1,300-9093-2-ND,ABM1024000MHZE20T,300-9093-2,535-9093-1,535-9093-2,2266-ABM10-24.000MHZ-E20-T
Standard Package 1,000
Win Source Part Number 994754-ABM10-24.000MHZ-E20-T
Ultra Librarian 3D Model Ultra Librarian ABM10-24.000MHZ-E20-T CAD Model

Description

The ABM10 series crystal is a high-quality MHz crystal that is designed to provide reliable and accurate frequency stability.

  • Operating Mode: fundamental
  • Frequency: 24 MHz
  • Load Capacitance: 10pF
  • ESR: 100 Ohms
  • Package: 4-SMD, No Lead
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.028" (0.70mm)
  • Frequency Tolerance: ±20ppm
  • Temperature Range: -20°C ~ 70°C
