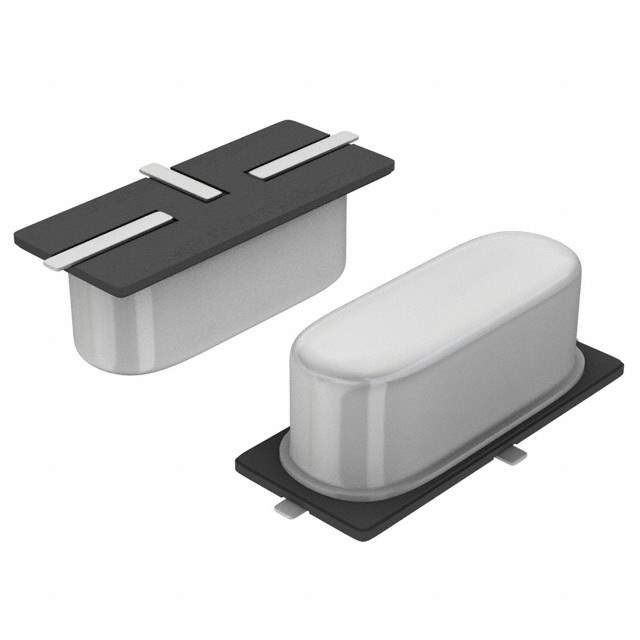

ABLSG-15.360MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLSG-15.360MHZ-D2Y-T

Part No ABLSG-15.360MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 15.3600MHZ 18PF SMD / Crystal 15.36MHz ±20ppm (Tol) ±30ppm (Stability) 18pF FUND 50Ohm 3-Pin HC-49/US SMD T/R
Datasheet
ABLSG-15.360MHZ-D2Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ABLSG
Packaging Reel package
Type MHz Crystal
Frequency 15.36MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package HC49/US - 3 Lead
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Maximum) 0.165" (4.20mm)
Win Source Part Number 794170-ABLSG-15.360MHZ-D2Y-T
Popularity Medium
Supply and Demand Status Limited
Family Name ABLSG
Introduction Date May 09, 2002
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ABLSG-15.360MHZ-D2Y-T CAD Model

Description

Abracon LLC's ABLSG 15.36MHz MHz Crystal is a high-quality crystal designed for use in various electronic devices.

  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±20ppm
  • ESR: 50 Ohm
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Temperature Range: -40°C to 85°C
  • Package: HC49/US - 3 Lead
  • Height: 0.165" (4.20mm)
