Same model may have multiple batches, images only for reference.

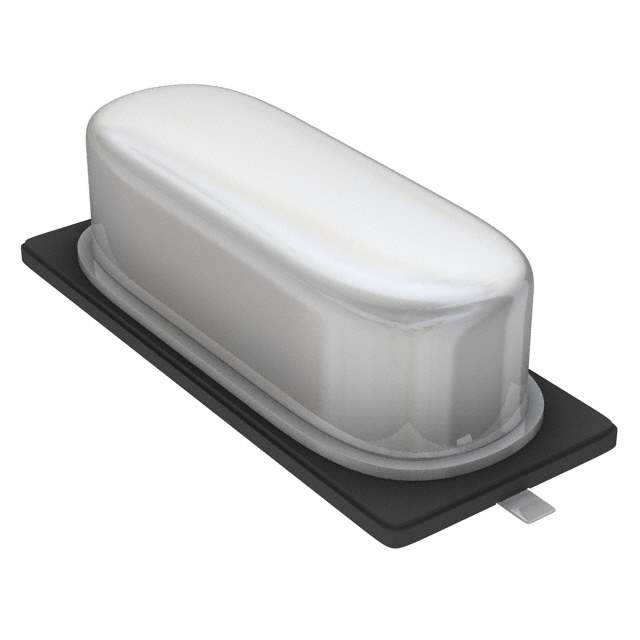

ABLS2-9.8304MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-9.8304MHZ-D4Y-T

Part No ABLS2-9.8304MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 9.8304MHZ 18PF SMD / 9.8304 MHz ±30ppm Crystal 18pF 60 Ohms HC-49/US
Datasheet
ABLS2-9.8304MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 9.8304 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9866-6,ABLS298304MHZD4YT,535-9866-2,535-9866-1
Standard Package 1,000
Win Source Part Number 1214596-ABLS2-9.8304MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-9.8304MHZ-D4Y-T CAD Model

Description

The Abracon LLC 1214596-ABLS2-9.8304MHZ-D4Y-T is a MHz crystal that is part of the ABLS2 series.

  • Frequency: 9.8304 MHz
  • Frequency Stability: ±30ppm
  • Height-Seated Maximum: 0.130 inches
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • ESR: 60 Ohms
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
