Same model may have multiple batches, images only for reference.

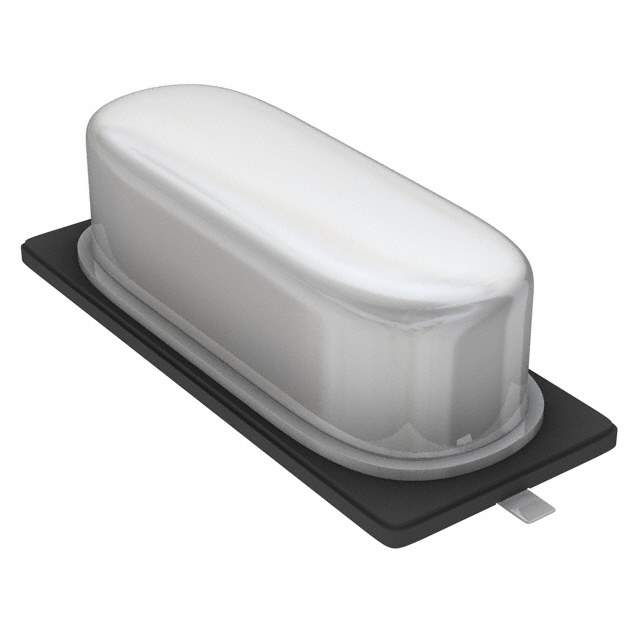

ABLS2-16.000MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-16.000MHZ-D4Y-T

Part No ABLS2-16.000MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 16.0000MHZ 18PF SMD / 16 MHz ±30ppm Crystal 18pF 40 Ohms HC-49/US
Datasheet
ABLS2-16.000MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9875-1,535-9875-2,ABLS216000MHZD4YT,535-9875-6
Standard Package 1,000
Win Source Part Number 1173260-ABLS2-16.000MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-16.000MHZ-D4Y-T CAD Model

Description

This electronic component is a crystal oscillator manufactured by Abracon LLC.

  • Frequency: 16 MHz
  • Frequency Tolerance: ±30ppm
  • Mounting: Surface Mount Technology
  • Package/Case: HC-49/US
  • Temperature Range: -40°C to 85°C
