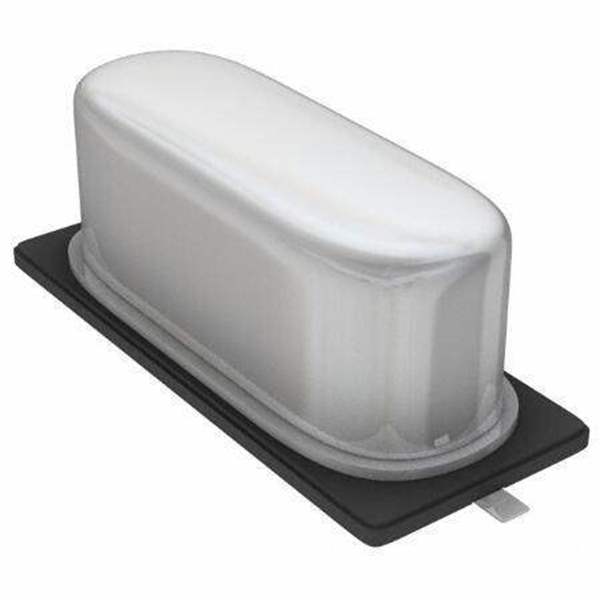

ABLS-LR-12.288MHZ-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABLS-LR-12.288MHZ-T

Part No ABLS-LR-12.288MHZ-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 12.2880MHZ 18PF SMD
Datasheet
ABLS-LR-12.288MHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 12.288 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 15 Ohms
Operating Mode Fundamental
Operating Temperature 0°C ~ 70°C
Win Source Part Number WS1305606-ABLS-LR-12.288MHZ-T
Ultra Librarian 3D Model Ultra Librarian ABLS-LR-12.288MHZ-T CAD Model

Description

FEATURES
• Ultra low ESR as low as 20 ohms for 4MHz, 85% lower than typical SMD Low Profile HC49S Crystals
• Low negative resistance(-R) IC design can ensure high oscillation margin
• Tight stability and automotive grade temperature available
• Hermetically resistance weld sealed
