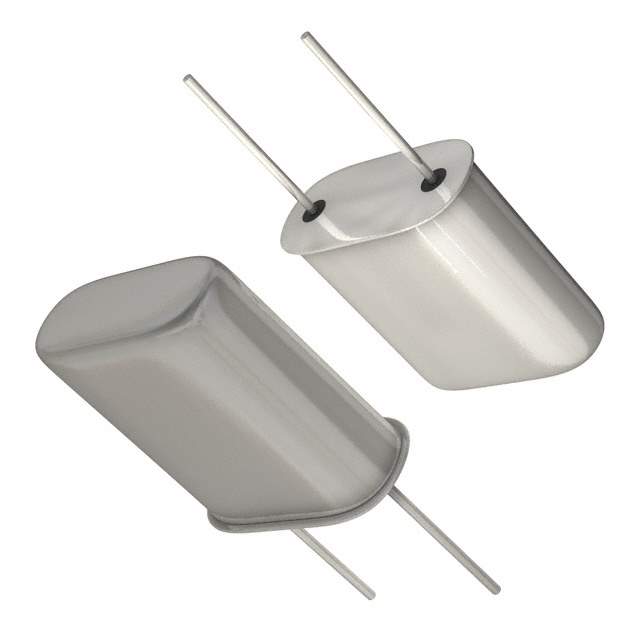

AB-32.768MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

AB-32.768MHZ-B2

Part No AB-32.768MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680MHZ 18PF TH / 32.768 MHz ±20ppm Crystal 18pF 25 Ohms HC-49/U
Datasheet
AB-32.768MHZ-B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series AB
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 32.768 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 25 Ohms
Operating Mode 3rd Overtone
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/U
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.530" (13.46mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names ,535-9018,535-AB-32.768MHZ-B2TR,300-9018,300-9018-ND,535-9018-ND
Standard Package 1,000
Win Source Part Number 976029-AB-32.768MHZ-B2
Ultra Librarian 3D Model Ultra Librarian AB-32.768MHZ-B2 CAD Model

Description

The 976029-AB-32.768MHZ-B2 is a MHz crystal from Abracon LLC.

  • Mounting Type: Through-Hole
  • Height Seated (Max): 0.530" (13.46mm)
  • Frequency: 32.768 MHz
  • ESR: 25 Ohms
  • Frequency Stability: ±100ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: 3rd Overtone
  • Dimensions: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Operating Temperature: -20°C ~ 70°C
  • Packaging: Tape and Reel
  • Standard Package: 1,000
