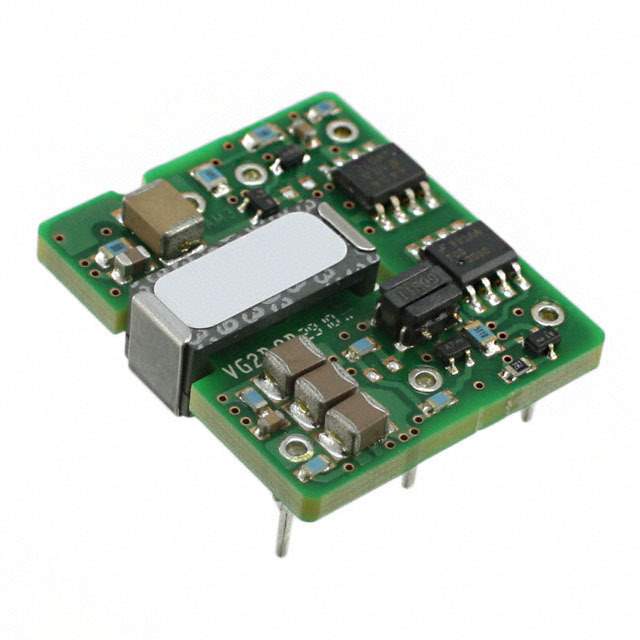

SW001A2B91 Real Image
Same model may have multiple batches, images only for reference.

SW001A2B91

Part No SW001A2B91
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description 18-36Vdc & 36-75Vdc Input; 3.3-15Vdc Output; 1-3.5A Output Current | DC DC CONVERTER 12V 14W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer ABB Embedded Power
Packaging Bulk
Status Obsolete
Type Isolated Module
Voltage - Input (Minimum) 36V
Voltage - Input (Maximum) 75V
Voltage - Output 1 12V
Current - Output (Maximum) 1.2A
Power (W) 14W
Voltage - Isolation 2.25kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Parts Dimension 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
Control Features Enable, Active Low
Manufacturer Pack Quantity 90
MSL Level Not Applicable
Win Source Part Number 1262692-SW001A2B91
Manufacturer Homepage www.lineagepower.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SW001A2B91 CAD Model

Description

The Isolated Module is a power supply board mount component designed for commercial ITE applications. ABB Embedded Power manufactures it.

  • Features: Remote on/off, overcurrent protection, overvoltage protection, and undervoltage lockout
  • Enable Control: Active low
  • Voltage Isolation: 2.25kV
  • Output Voltage: 12V
  • Efficiency: 87%
  • Maximum Output Current: 1.2A
  • Package: 6-DIP
  • Mounting: Through hole
  • Power Rating: 14W
  • Voltage Input Range: 36V to 75V
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Dimensions: 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
