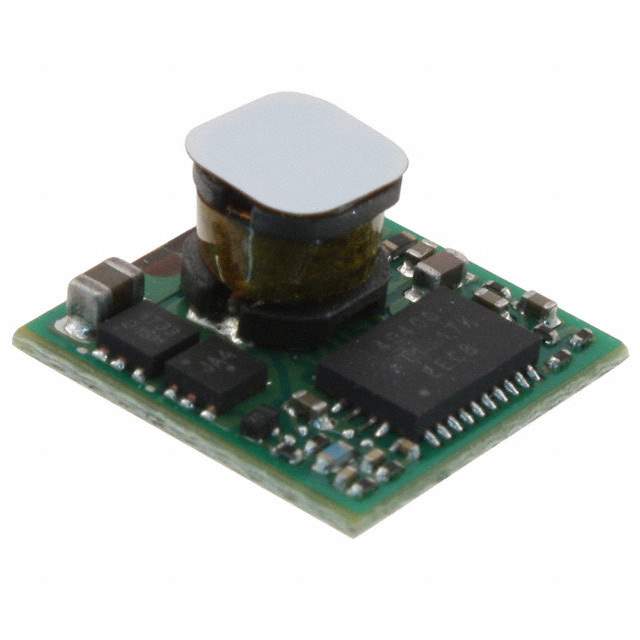

PVX003A0X3-SRZ Real Image
Same model may have multiple batches, images only for reference.

PVX003A0X3-SRZ

Part No PVX003A0X3-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-5.5V 16.5W  /  Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 3A 3V - 14.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr ABB Power Electronics Inc.
Series PicoDLynx™
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 3V
Voltage - Input (Max) 14.4V
Voltage - Output 1 0.6 ~ 5.5V
Current - Output (Max) 3A
Power (Watts) 16.5 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 94%
Mounting SMD (SMT)
Package / Case 17-SMD Module
Dimension 0.48" L x 0.48" W x 0.25" H (12.2mm x 12.2mm x 6.3mm)
Control Features Enable, Active Low
Base Product Number PVX003
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 555-1264-2,PVX003A0X3SRZ,555-1264-1,CC109159562,555-1264-6
Standard Package 200
Win Source Part Number 1198538-PVX003A0X3-SRZ
Ultra Librarian 3D Model Ultra Librarian PVX003A0X3-SRZ CAD Model

Description

The PicoDLynx™ Non-Isolated PoL Module is a high-performance DC-DC converter that is designed for use in ITE (Commercial) applications.

  • Manufacturer: ABB Power Electronics Inc.
  • Applications: ITE (Commercial)
  • Features: Remote On/Off, OCP, OTP, UVLO
  • Control Features: Enable, Active Low
  • Power Output: 16.5 W
  • Max Output Current: 3A
  • Voltage Input: 3V and 14.4V
  • Voltage Output: 0.6V and 5.5V
  • Temperature Range: -40°C to 85°C
  • Package: 17-SMD Module
  • Efficiency: 94%
  • Packaging: Tape and Reel
  • Standard Package: 200 modules
  • Dimensions: 0.48" L x 0.48" W x 0.25" H (12.2mm x 12.2mm x 6.3mm)
  • MSL Level: 2A (4 Weeks)
  • HTSUS: 8504.40.9580
