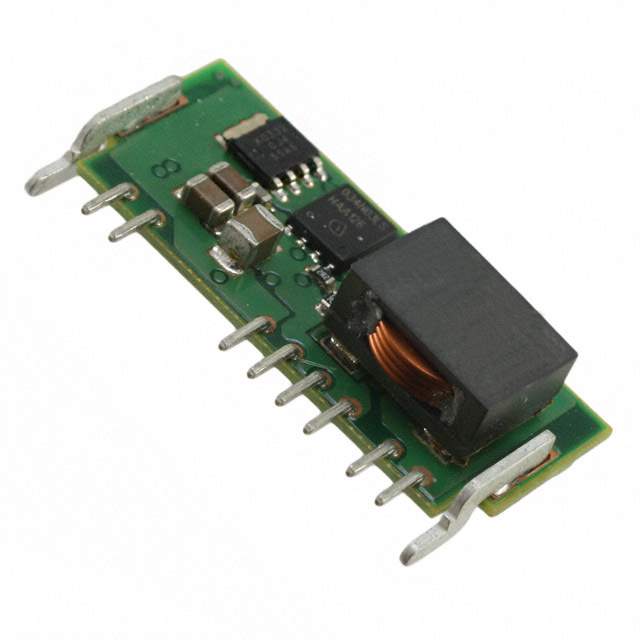

Same model may have multiple batches, images only for reference.

NSR020A0X543Z

Name: NSR020A0X543Z
Brand: ABB Embedded Power
SKU: 929388
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NSR020A0X543Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.59-6V 120W
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Features	Non-Isolated PoL Module DC DC Converter 1 Output 0.59 ~ 6V - - 20A 4.5V - 14.4V Input
Manufacturer	ABB Embedded Power
Series	Naos Raptor
Package	Tray
Part Status	Obsolete
Operating Temperature Range	-40°C ~ 85°C
Mounting	Through Hole
Package	10-SIP Module
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	109154596, CC109154596
Quantity per package	160
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	929388-NSR020A0X543Z
Ultra Librarian 3D Model	Ultra Librarian NSR020A0X543Z CAD Model

Alternative Products

Description

The ABB Embedded Power Naos Raptor is a non-isolated PoL module DC DC converter that features one output and a 0.59 ~ 6V voltage range.

Input Voltage Range: 4.5V - 14.4V
Current: Up to 20A
Operating Temperature Range: -40°C ~ 85°C
Package: 10-SIP module
Mounting: Through a hole
Category: Power Supplies - Board Mount
ECCN: EAR99
Status: Obsolete
Popularity Rating: High
Supply and Demand Status: Balanced
MSL Level: 2A (4 Weeks)
HTSUS: 8504.40.9580
Other part numbers: 109154596 and CC109154596
