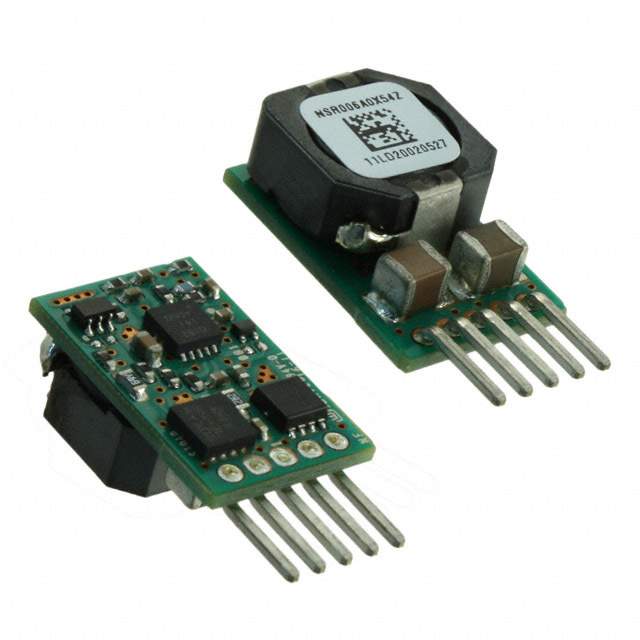

Same model may have multiple batches, images only for reference.

NSR010A0X4Z

Name: NSR010A0X4Z
Brand: ABB Embedded Power
SKU: 1349108
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NSR010A0X4Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.6-6V 60W / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 6V 10A 4.5V - 14V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	Naos Raptor
Package	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	14V
Voltage - Output 1	0.6 ~ 6V
Current - Output (Max)	10A
Power (Watts)	60 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	93.6%
Mounting Type	Through Hole
Package / Case	5-SIP Module
Size / Dimension	0.41" L x 0.27" W x 0.65" H (10.4mm x 6.9mm x 16.5mm)
Control Features	Enable, Active High
Base Product Number	NSR010
Standard Package	315
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1349108-NSR010A0X4Z
Ultra Librarian 3D Model	Ultra Librarian NSR010A0X4Z CAD Model

Alternative Products

Description

The NSR010A0X4Z is a non-isolated PoL module from the Naos Raptor series by ABB Power Electronics Inc.

Package: Tray
Size: 0.41 inches L x 0.27 inches W x 0.65 inches H (10.4mm x 6.9mm x 16.5mm)
Power Rating: 60W
Features: Remote On/Off, OCP, OTP, UVLO
Control Feature: Enable, Active High
Output: Single
Maximum Output Current: 10A
Input Voltage: 4.5V to 14V
Output Voltage: 0.6V to 6V
Efficiency: 93.6%
Mounting Type: Through Hole
Package: 5-SIP Module
Operating Temperature: -40 degrees Celsius to 85 degrees Celsius
