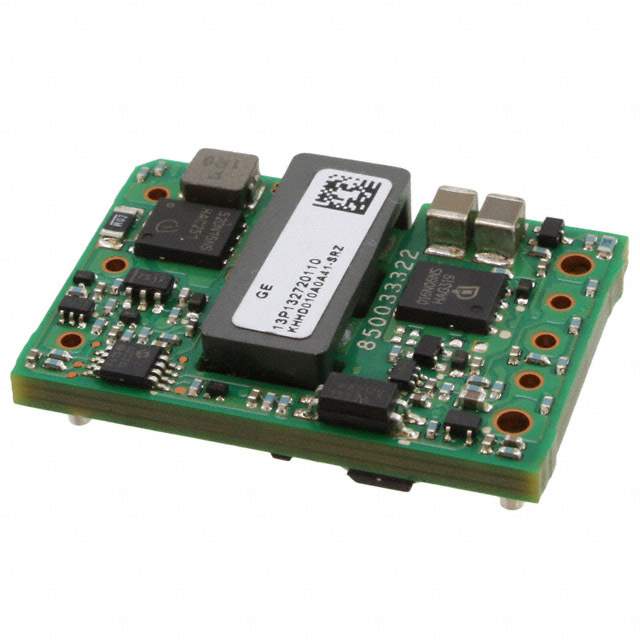

Same model may have multiple batches, images only for reference.

KHHD010A0A41Z

Name: KHHD010A0A41Z
Brand: ABB Embedded Power
SKU: 1349663
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	KHHD010A0A41Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 50W / Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	Hammerhead™ KHHD010A0A
Package	Tray
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	10A
Power (Watts)	50 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm)
Control Features	Enable, Active Low
Base Product Number	KHHD010
Standard Package	75
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1349663-KHHD010A0A41Z
Ultra Librarian 3D Model	Ultra Librarian KHHD010A0A41Z CAD Model

Alternative Products

Description

The Hammerhead™ KHHD010A0A series from ABB Power Electronics Inc. is a power supply board mount DC DC converter.

Converter Type: Isolated Module
Features: Remote On/Off, OCP, OTP, OVP, and UVLO
Package: Tray
Dimensions: 1.30" L x 0.90" W x 0.37" H (33.0mm x 22.8mm x 9.5mm)
Application: ITE (Commercial)
Standard Package: 75
Power: 50 W
Control Features: Enable, Active Low
Voltage Isolation: 2.25 kV
Number of Outputs: 1
Maximum Output Current: 10A
Input Voltage: 18V to 75V
Output Voltage: 5V
Efficiency: 91%
Mounting: Through Hole
Package/Case: 8-DIP Module
Temperature Range: -40°C to 85°C
MSL Level: 2A (4 Weeks)
HTSUS: 8504.40.9580
