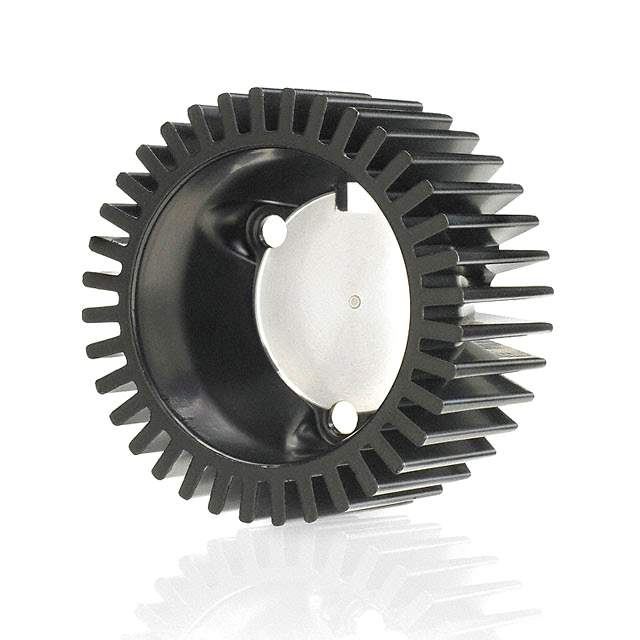

HM16S-CALBL-001 Real Image
Same model may have multiple batches, images only for reference.

HM16S-CALBL-001

Part No HM16S-CALBL-001
Manufacturer Aavid Thermalloy
Catalog LED Thermal Products
Description HEATSINK 20W MR16 CONFIG BLACK / Heat Sink Passive Panel Mount Aluminum
Datasheet
HM16S-CALBL-001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Aavid Thermalloy
Series SynJet
Type Heat Sink
For Use With/Related Products Tracklights, MR16
Shape Round
Win Source Part Number 776051-HM16S-CALBL-001
Popularity Medium
Supply and Demand Status Limited
Quantity per package 250
Family Name HM16S
Introduction Date July 10, 2008
ECCN EAR99
Country of Origin China
Ultra Librarian 3D Model Ultra Librarian HM16S-CALBL-001 CAD Model

Description

The Aavid Thermalloy SynJet heat sink is a round shaped heat sink, designed for use with tracklights and MR16.

  • Material: High-quality
  • Length: 1.810" (45.97mm)
  • Width: 1.810" (45.97mm)
  • Family Name: HM16S
  • ECCN Compliance: Yes
  • Manufactured in: China
  • Package: 250
  • Supply: Limited
