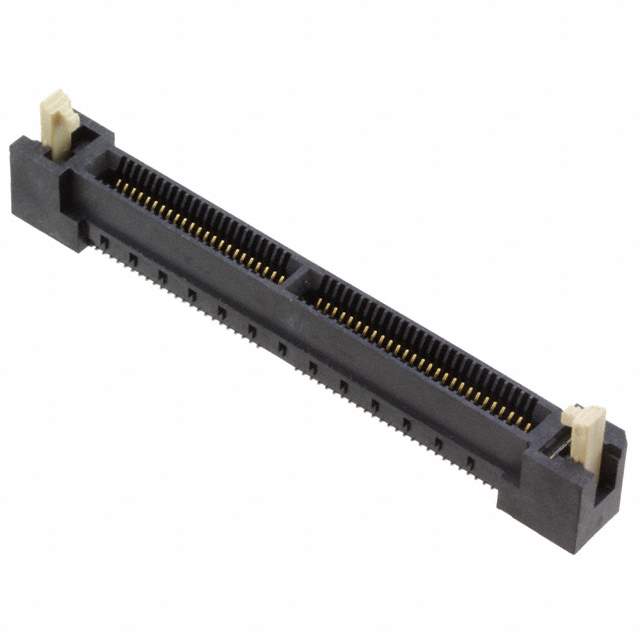

SPD08-100-L-RB-TR Real Image
Same model may have multiple batches, images only for reference.

SPD08-100-L-RB-TR

Part No SPD08-100-L-RB-TR
Manufacturer 3M
Catalog Card Edge Connectors - Edgeboard Connectors
Datasheet
SPD08-100-L-RB-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr 3M
Series SPD08
Package Tape & Reel
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions 100
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Latches
Mounting SMD (SMT)
Termination Solder
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP), Glass Filled
Base Product Number SPD08
Other Names 3M12040TR,XF003826955,SPD08100LRBTR,00076308602550,7100018640,3M12040DKR,3M12040CT
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294250-SPD08-100-L-RB-TR
Ultra Librarian 3D Model Ultra Librarian SPD08-100-L-RB-TR CAD Model

Description

The SPD08-100-L-RB-TR is a female card edge connector manufactured by 3M.

  • Feature: Dual readout
  • Contact Material: Copper Alloy
  • Color: Black
  • Board Guide: With Latches
  • Termination: Solder
  • Mounting Type: SMD (SMT)
  • Series: SPD08
  • Number of Positions: 100
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Pitch: 0.031" (0.80mm)
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
