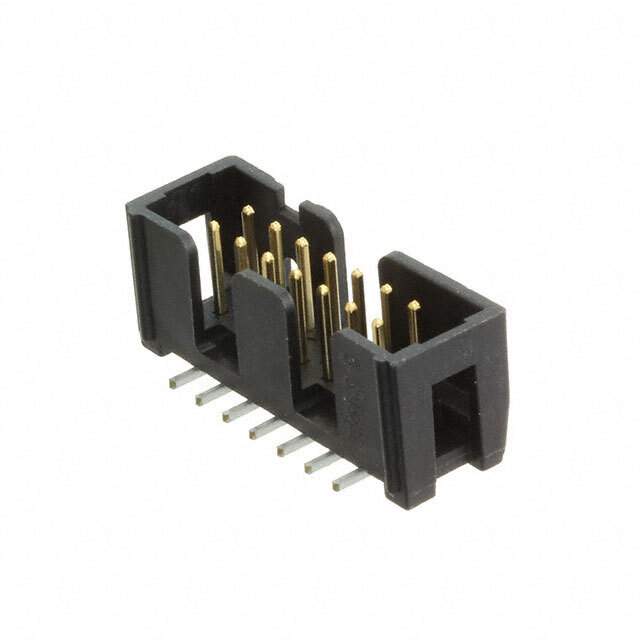

The 3M 2500 series male pin header connector is a rectangular connector used for board to board or cable connections.

• Manufacturer: 3M
• Type: male pin header connector
• Shape: rectangular connector
• Applications: board to board or cable connections.
• Pitch: 0.100" (2.54mm)
• Positions: 14 positions loaded in 2 rows.
• Shrouded: shrouded with 4 walls
• Fastening: push-pull fastening type.
• Contact Material: copper alloy
• Mating Finish: gold mating finish with a thickness of 30.0µin (0.76µm).
• Post Finish: tin with a thickness of 200.0µin (5.08µm).
• Insulation Material: polycyclohexylenedimethylene terephthalate (PCT), glass filled, and has a black color.
• Temperature Range: -55°C ~ 105°C
• Current Rating: 1.75A.
• Mounting: mounted using SMD (SMT)
• Package: comes in a tape & reel package.
• Description: perfect for applications that require a reliable and secure connection.
