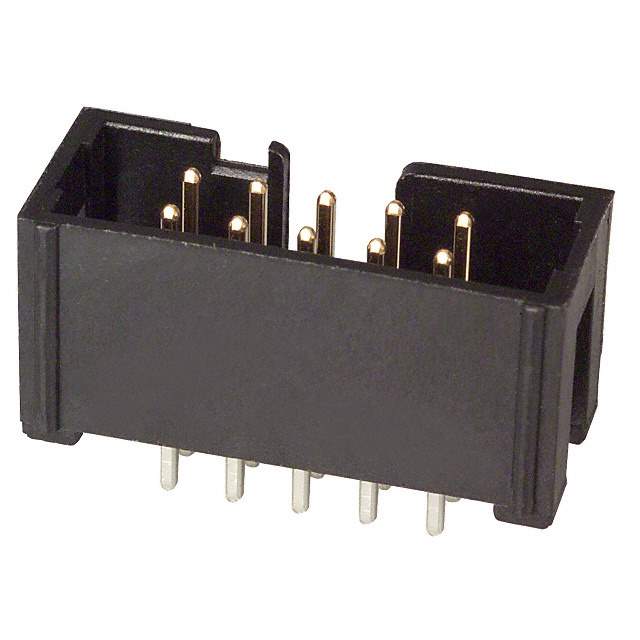

N2510-6002RB-WD

Name: N2510-6002RB-WD
Brand: 3M
SKU: 497622
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	N2510-6002RB-WD
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER 10POS STR .100 T/H
Datasheet	N2510-6002RB-WD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	3M
Packaging	Reel - TR
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.243" (6.17mm)
Contact Length - Post	0.112" (2.84mm)
Insulation Height	0.390" (9.91mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C to 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	1.75A
Contact Finish Thickness - Post	200μin (5.08μm)
Win Source Part Number	1081502-N2510-6002RB-WD
Popularity	Medium
Supply and Demand Status	Balance
Application Field	Used in Industrial, Consumer Electronics
Ultra Librarian 3D Model	Ultra Librarian N2510-6002RB-WD CAD Model

Description

The 3M 1081502-N2510-6002RB-WD is a 10-position header connector with a shrouded-4 wall and a keying slot.

Mounting Style: board to board or cable
Pitch: 2.54mm
Contact Type: male pin
Termination: solder
Current Rating: 1.75A
Insulation Material: polycyclohexylenedimethylene terephthalate (PCT), polyester, glass filled
Insulation Color: black
Contact Finish: gold
Contact Finish Thickness: 30μin (0.76μm)
RoHS Compliant: Yes
Temperature Range: -55°C to 105°C
