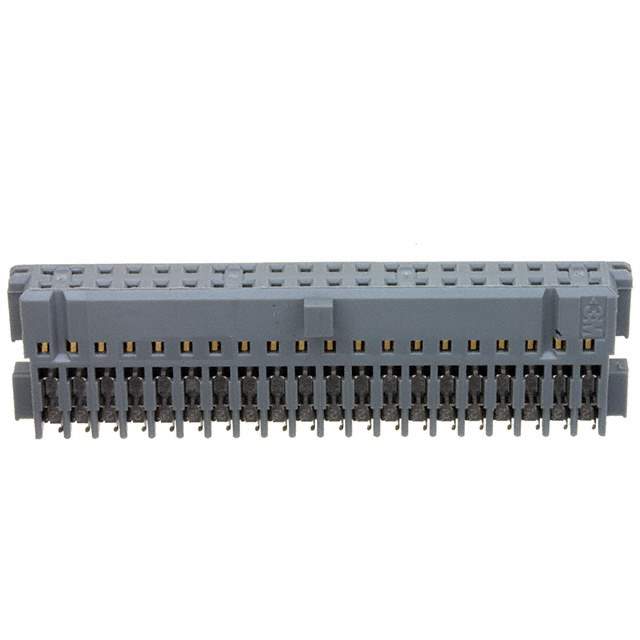

Same model may have multiple batches, images only for reference.

CHG-2040-J01010-KEP

Name: CHG-2040-J01010-KEP
Brand: 3M
SKU: 1034203
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CHG-2040-J01010-KEP
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN RCPT 40P IDC 22-24AWG GOLD / 40 Position Rectangular Receptacle Connector IDC Gold 22-24 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	3M
Series	CHG
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	40
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Cable Termination	IDC
Wire Type	Discrete or Ribbon Cable
Wire Gauge	22-24 AWG
Features	Closed End, Polarizing Key
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Color	Gray
Base Product Number	CHG
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	7000057973,80610212187,00054007621812,3M9116,54007621812,CHG-2040-J01010-KEP-ND,05400762181,XP700009309,7100262309,5400762181,CHG2040J01010KEP
Standard Package	100
Win Source Part Number	1034203-CHG-2040-J01010-KEP
Ultra Librarian 3D Model	Ultra Librarian CHG-2040-J01010-KEP CAD Model

Alternative Products

Description

The CHG series from 3M is a rectangular connector that is designed for free hanging and panel mount applications.

Mounting Type: Free Hanging, Panel Mount
Connector Type: Receptacle
Contact Type: Female Socket
Pitch: 0.100" (2.54mm)
Number of Positions: 40
Closed End: Yes
Polarizing Key: Yes
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Wire Gauge: 22-24 AWG
Termination: IDC Cable
Wire Type: Discrete or Ribbon Cable
Packaging: Bulk
Alternative Parts: 3417-7640, 3417-7040, 89136-0101, 71600-040LF, 6-102398-8, 1658621-980610212187, and CHG2040J01010KEP
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4051
