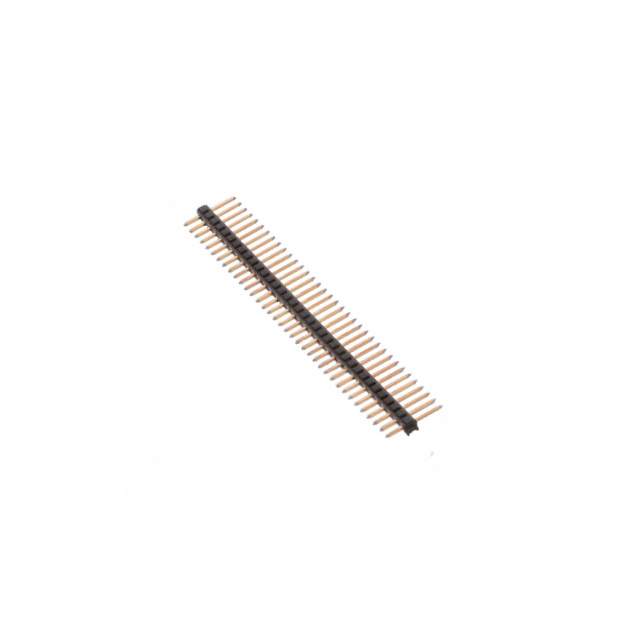

929647-09-36-I Real Image
Same model may have multiple batches, images only for reference.

929647-09-36-I

Part No 929647-09-36-I
Manufacturer 3M
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 36POS 2.54MM / Connector Header Through Hole 36 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 929
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 36
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.235" (5.97mm)
Contact Length - Post 0.145" (3.68mm)
Overall Contact Length 0.480" (12.19mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.5A
Contact Finish Thickness - Post 10.0µin (0.25µm)
Base Product Number 929647
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 929647-09-36-ND,80620013427,3M156537-36,80-6200-1342-7,9296470936I,5400780593,7010399218,929647-09,929647-09-36,54007805939
Standard Package 100
Win Source Part Number 1118285-929647-09-36-I
Ultra Librarian 3D Model Ultra Librarian 929647-09-36-I CAD Model

Description

The 929647-09-36-I is a male pin header connector from 3M.

  • Manufacturer: 3M
  • Category: Connectors
  • Market Popularity: High
  • Win Source Part Number: 1118285-929647-09-36-I
  • Connector Type: Pin Header (Male)
  • Application: Board-to-Board Connections
  • Contact Shape: Square
  • Contact Plating: Gold
