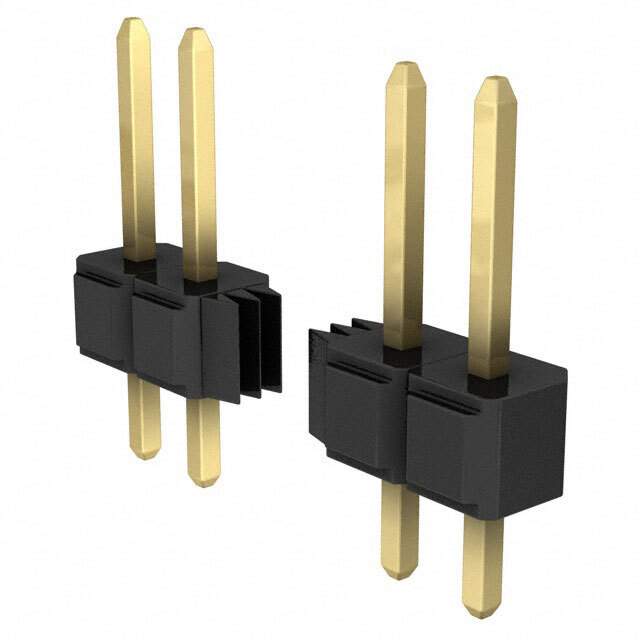

929647-01-30-I Real Image
Same model may have multiple batches, images only for reference.

929647-01-30-I

Part No 929647-01-30-I
Manufacturer 3M
Catalog Circular Connectors - Housings
Description CONN HEADER VERT 30POS 2.54MM / Connector Header Through Hole 30 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr 3M
Series 929
Package Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 30
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.235" (5.97mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.445" (11.30mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Gold
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.5A
Contact Finish Thickness - Post 10.0µin (0.25µm)
Base Product Number 929647
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 3M156515-30,929647-01-30,929647-01-30-ND,929647E-01-30,929647E-01-30-ND
Standard Package 1
Win Source Part Number 1212513-929647-01-30-I
Ultra Librarian 3D Model Ultra Librarian 929647-01-30-I CAD Model

Description

This is a 929 series male pin header connector with a breakaway feature that is designed to provide an easy and secure connection for your electronic devices.

  • Positions Loaded: 30
  • Contact Shape: Square
  • Fastening Type: Push-Pull
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Termination: Solder
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass-Filled
  • Insulation Color: Black
  • Contact Length (Overall): 0.445 inches (11.30mm)
  • Contact Length (Mating): 0.235 inches (5.97mm)
  • Operating Temperature: -40 to 105 degrees Celsius
  • Current Rating: 2.5A
  • Application: Board to Board
  • Package: Bulk
