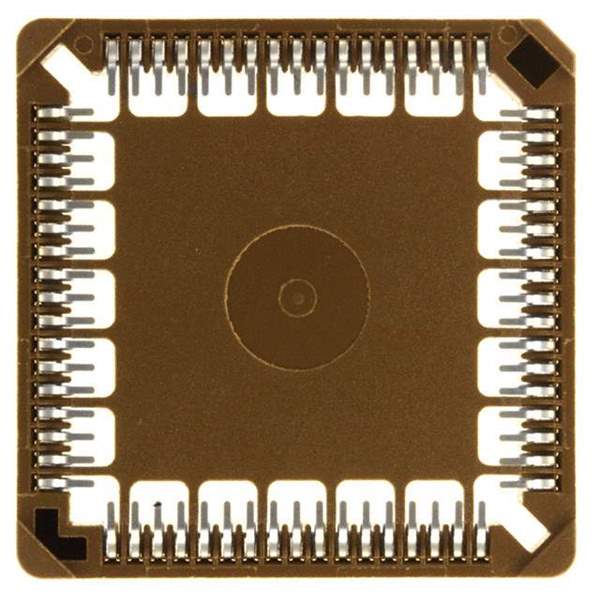

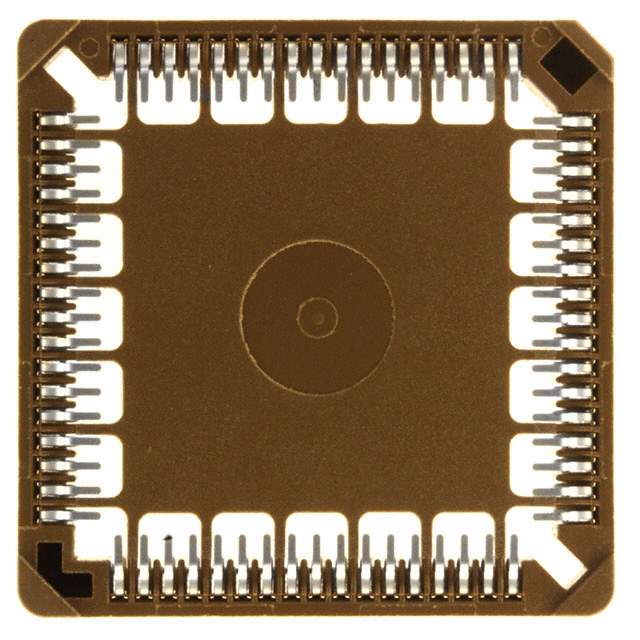

8468-21B1-RK-TR Real Image
Same model may have multiple batches, images only for reference.

8468-21B1-RK-TR

Part No 8468-21B1-RK-TR
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description CONN SOCKET PLCC 68POS TIN / 68 (4 x 17) Pos PLCC Socket Tin Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr 3M
Series 8400
Package Tape & Reel
Type PLCC
Number of Positions or Pins (Grid) 68 (4 x 17)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 160.0µin (4.06µm)
Contact Material - Mating Copper Alloy
Mounting SMD (SMT)
Features Closed Frame
Termination Solder
Pitch - Post 0.050" (1.27mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 160.0µin (4.06µm)
Contact Material - Post Copper Alloy
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Termination Post Length 0.132" (3.35mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 15mOhm
Base Product Number 8468
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 00051111663318,3M6821B1DKR,80000905499,846821B1RKTR,3M6821B1CT,3M6821B1TR,7000057183
Standard Package 200
Win Source Part Number 1162176-8468-21B1-RK-TR
Ultra Librarian 3D Model Ultra Librarian 8468-21B1-RK-TR CAD Model

Description

The 3M 1162176-8468-21B1-RK-TR is a PLCC type socket connector that has a closed frame feature and is designed to be soldered onto a printed circuit board.

  • Positions: 68
  • Grid: 4 x 17
  • Pitch: 0.050 inches (1.27mm)
  • Housing Material: Polybutylene terephthalate (PBT) glass filled
  • Flammability Rating: UL94 V-0
  • Contact Material: Copper alloy
  • Contact Finish: Tin with a thickness of 160.0µin (4.06µm)
  • Temperature Range: -40°C to 105°C
  • Current Rating: 1A
  • Contact Resistance: 15mOhm
  • Packaging: Tape and reel
  • Standard Package: 200
