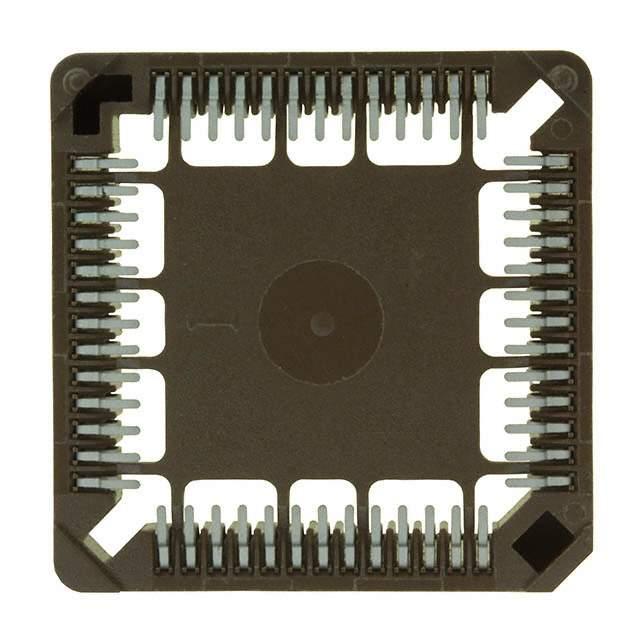

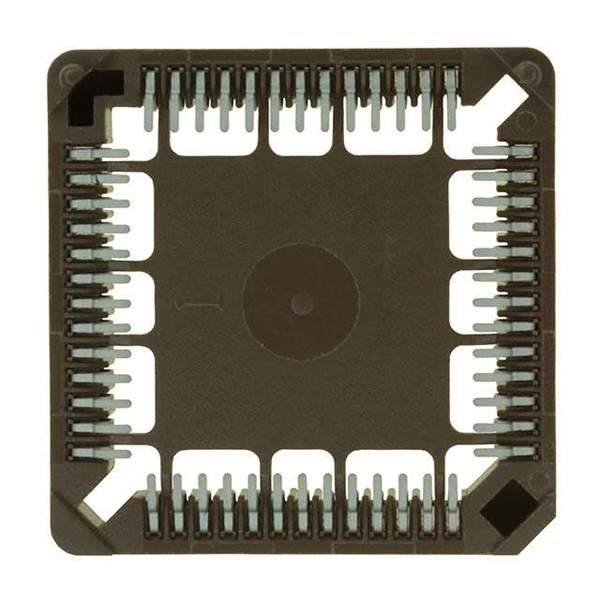

8452-21A1-RK-TP Real Image1 8452-21A1-RK-TP Real Image2
Same model may have multiple batches, images only for reference.
8452-21A1-RK-TP Real Image1 8452-21A1-RK-TP Real Image2
8452-21A1-RK-TP Real Image1 8452-21A1-RK-TP Real Image2
Same model may have multiple batches, images only for reference.

8452-21A1-RK-TP

Part No 8452-21A1-RK-TP
Manufacturer 3M
Catalog Sockets for ICs, Transistors
Description CONN SOCKET PLCC 52POS TIN / 52 (4 x 13) Pos PLCC Socket Tin Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors>IC Sockets
Mfr 3M
Series 8400
Package Tube
Type PLCC
Number of Positions or Pins (Grid) 52 (4 x 13)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 160.0µin (4.06µm)
Contact Material - Mating Copper Alloy
Mounting Type Surface Mount
Features Closed Frame
Termination Solder
Pitch - Post 0.050" (1.27mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 160.0µin (4.06µm)
Contact Material - Post Copper Alloy
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Termination Post Length 0.132" (3.35mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance -
Base Product Number 8452
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 23 pcs
Win Source Part Number 1381197-8452-21A1-RK-TP
Ultra Librarian 3D Model Ultra Librarian 8452-21A1-RK-TP CAD Model

Description

The IC Socket with the Win Source Part Number 1381197-8452-21A1-RK-TP is a high-quality connector for ICs and transistors.

  • Series: 8400
  • Design: Closed Frame
  • Termination: Solder
  • Package: Tube
  • Housing Material: Polybutylene Terephthalate (PBT) with Glass Fill
  • Flammability Rating: UL94 V-0
  • Positions/Pins: 52
  • Arrangement: 4x13
  • Mating Pitch: 0.050 inches (1.27mm)
  • Contact Finish: Tin
  • Contact Finish Thickness: 160.0µin (4.06µm)
  • Contact Material: Copper Alloy
  • Termination Post Length: 0.132 inches (3.35mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 105°C
  • Manufacturer: 3M
  • Standard Package Quantity: 23 pieces
