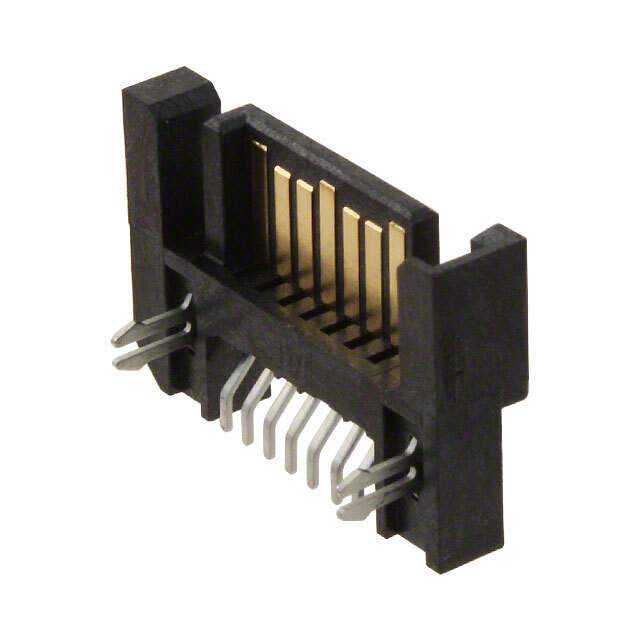

5607-4200-SH Real Image
Same model may have multiple batches, images only for reference.

5607-4200-SH

Part No 5607-4200-SH
Manufacturer 3M
Catalog Pluggable Connectors
Description CONN SATA PLUG 7POS SLD R/A SMD / 7 Position SATA Plug Connector Solder Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr 3M
Series 5607
Package Tube
Product Status Obsolete
Connector Style Plug
Connector Type SATA
Number of Positions 7
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Lock
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 5607
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names XE004225027,5111174499,3M5561,51111744994,7010506875,56074200SH
Standard Package 30
Win Source Part Number 1027092-5607-4200-SH
Ultra Librarian 3D Model Ultra Librarian 5607-4200-SH CAD Model

Description

The 3M 1027092-5607-4200-SH is a SATA plug connector that belongs to the 5607 series. It is a surface mount, right angle package with a tube package type. The connector has 7 positions and has a board lock feature. It has an obsolete part status and has an ECCN EAR99 compliance. It has an MSL level of 1 (Unlimited) and is REACH unaffected. Its HTSUS code is 8536.69.4040. The 3M 1027092-5607-4200-SH is a reliable connector that can be used in various applications.
