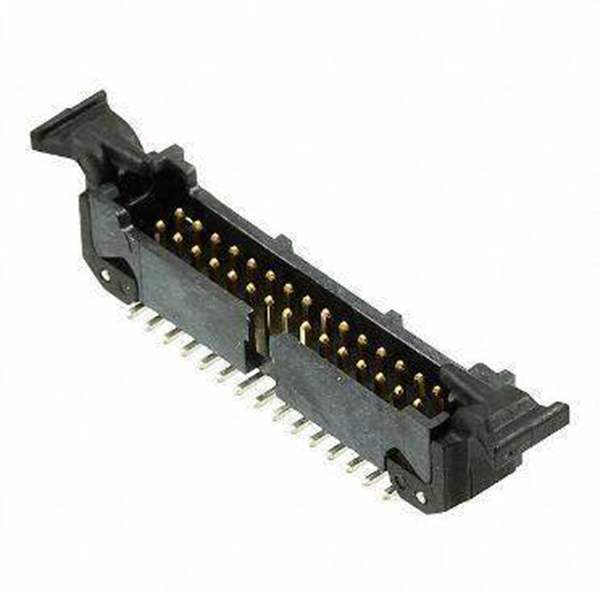

Part No 45230-220230
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 1.27MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 3M
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Product Status Active
Connector Type Header
Contact Type Male Pin
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Shrouding Shrouded - 4 Wall
Fastening Type Latch Lock/Eject Hooks, Short
Insulation Height 0.222" (5.65mm)
Win Source Part Number WS1208580-45230-220230
Ultra Librarian 3D Model Ultra Librarian 45230-220230 CAD Model

Description

3M has been among the world’s leaders in connectors utilizing Insulation Displacement Contacts (IDCs).
• 3M™ Ribbon Cable Wiremount Socket Assembly, 451 Series, 1.27 mm (0.050") Pitch
• 3M™ Shrouded Boardmount Header, 452 Series, 1.27 mm (0.050") Pitch The 3M cable socket 451 and 3M header 452 series are used together as a high density wire-to-board solution with a 1.27mm (0.050") pitch and a 0.635mm (0.025") pitch ribbon cable. This system uses insulation displacement contact (IDC) technology and cantilever U-contacts, proven reliable termination and space saving without sacrificing connection density.
