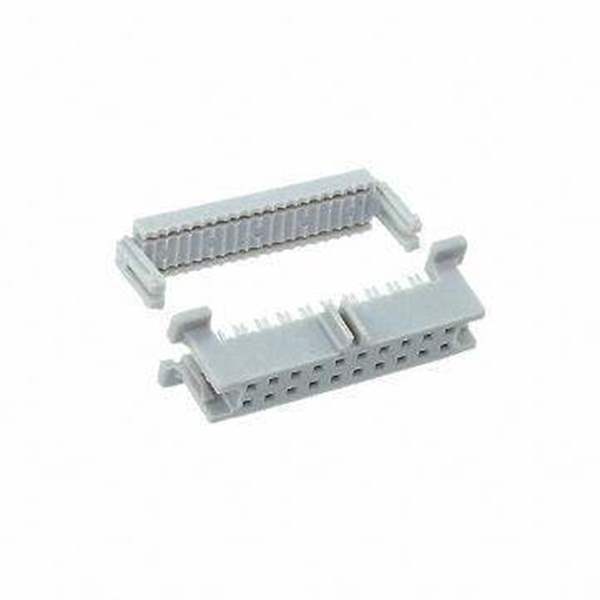

45120-0100303M
Same model may have multiple batches, images only for reference.

45120-010030

Part No 45120-010030
Manufacturer 3M
Catalog Rectangular Connectors
Description CONN RCPT 20POS IDC 30AWG GOLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 3M
Category Connectors, Interconnects Rectangular Connectors Free Hanging, Panel Mount
Package Tray
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Pitch 0.050" (1.27mm)
Row Spacing 0.050" (1.27mm)
Mounting Type Free Hanging (In-Line)
Features Feed Through, Polarizing Key
Win Source Part Number WS1208578-45120-010030
Ultra Librarian 3D Model Ultra Librarian 45120-010030 CAD Model

Description

20 Position Rectangular Receptacle Connector IDC Gold 30 AWG
