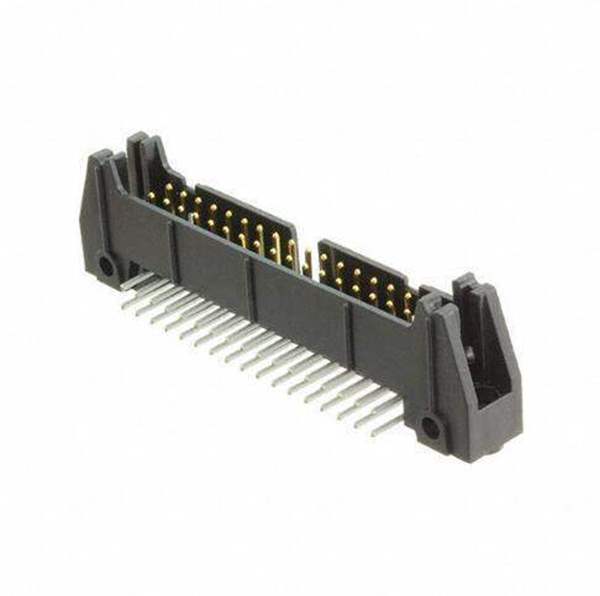

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer 3M
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Bulk
Product Status Obsolete
Contact Type Male Pin
Shrouding Shrouded - 4 Wall
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Win Source Part Number WS1208051-3431-5002
Ultra Librarian 3D Model Ultra Librarian 3431-5002 CAD Model

Description

Connector Header Through Hole, Right Angle 34 position 0.100" (2.54mm)
