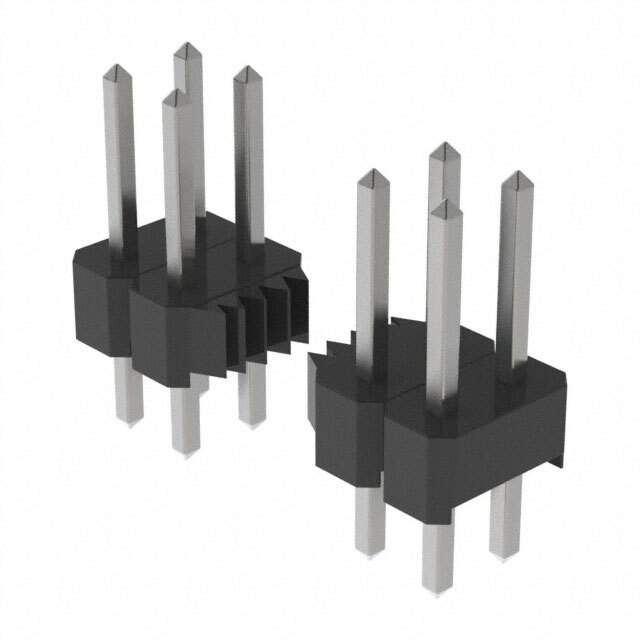

2306-6121-TP

Name: 2306-6121-TP
Brand: 3M
SKU: 1339281
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2306-6121-TP
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	2300
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.120" (3.05mm)
Overall Contact Length	0.450" (11.43mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Glass Filled
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	2306
Standard Package	1,000
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339281-2306-6121-TP
Ultra Librarian 3D Model	Ultra Librarian 2306-6121-TP CAD Model

Description

The 3M 2300 series header male pins are rectangular connectors with a pitch of 0.100 inches (2.54 mm) and 6 positions.

Pitch: 0.100 inches (2.54 mm)
Positions: 6
Contact Type: Male Pin
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Copper Alloy
Contact Finish: Tin-Lead
Voltage Rating: 125V
Current Rating: 3A
Insulation Material: Thermoplastic, Glass-Filled
Insulation Color: Black
Mounting: Through-Hole
Row Spacing: 0.100 inches (2.54 mm)
Insulation Height: 0.100 inches (2.54 mm)
Contact Shape: Square
Temperature Range: -55°C to 105°C
Application: Board-to-Board or Cable
