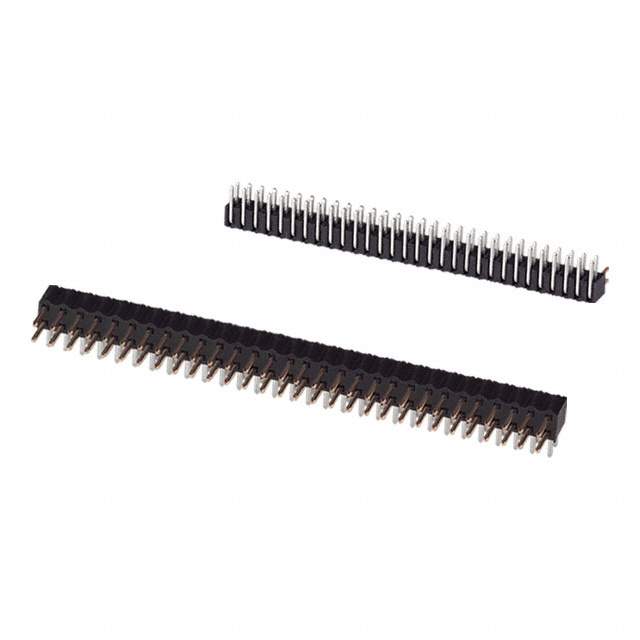

The 3M 1512 Series is a board-to-board or cable style header connector with 60 positions, 2 rows, and a pitch of 0.079 inches (2.00mm).

• Positions: 60
• Number of Rows: 2
• Pitch: 0.079 inches (2.00mm)
• Connector Type: Male Pin
• Connection Style: Board-to-Board or Cable
• Fastening Type: Push-Pull
• Termination: Solder
• Contact Finish (Mating): Gold with a thickness of 30.0µin (0.76µm)
• Contact Finish (Post): Tin with a thickness of 200.0µin (5.08µm)
• Insulation Material: Liquid Crystal Polymer (LCP) with Glass Filled
• Height: 0.165 inches (4.20mm)
• Insulation Color: Black
• Contact Length (Post): 0.118 inches (3.00mm)
• Contact Length (Mating): 0.152 inches (3.86mm)
• Current Rating: 1A
• Temperature Range: -55°C to 105°C
• Suitable for: Board-to-Board or Cable Connections
