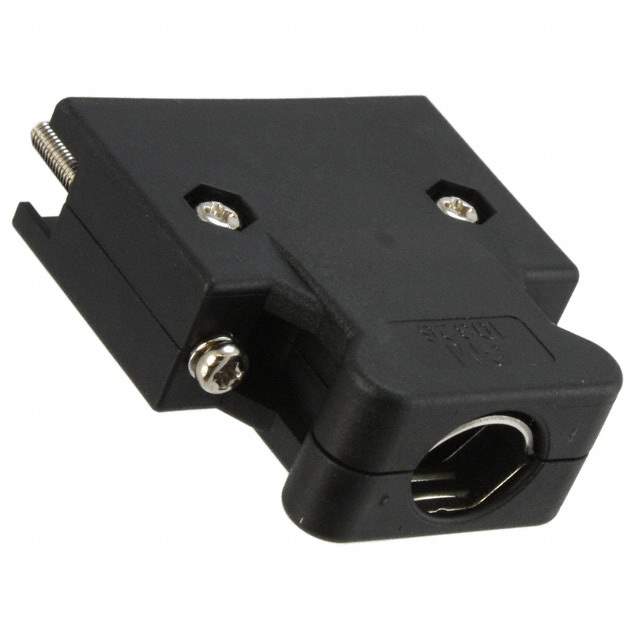

10326-52A0-008 Real Image
Same model may have multiple batches, images only for reference.

10326-52A0-008

Part No 10326-52A0-008
Manufacturer 3M
Catalog D - Sub, D - Shaped Connectors - Backshells, Hoods
Description CONN BACKSHELL 26POS 180DEG BLK / 26 Position Two Piece Backshell Connector Black 180° Unshielded
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub, D-Shaped Connector Backshells, Hoods
Manufacturer 3M
Packaging Box
Accessory Type Two Piece Backshell
Number of Positions 26
Cable Type Round
Cable Exit 180°
Shielding Unshielded
Material Polybutylene Terephthalate, Glass Filled
Hardware Assembly Hardware, Strain Relief
Features Mating Screws M2.6
Color Black
Base Product Number 10326
RoHS Status RoHS Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number 7000007401,90169009364,1032652A0008,4901690093647,JE150188272,-10326-52A0-008
Standard Package 100
Win Source Part Number 1333188-10326-52A0-008
Ultra Librarian 3D Model Ultra Librarian 10326-52A0-008 CAD Model

Description

The 3M 10326-52A0-008 is a black-colored two-piece backshell designed for use with D-sub, D-shaped connectors.

  • Accessory Type: Backshell
  • Pieces: Two-Piece
  • Color: Black
  • Manufacturer: 3M
  • Packaging: Box
  • Supply and Demand Status: Limited
  • RoHS Compliant: Yes
  • Mating Screws: M2.6
  • Features: Assembly Hardware, Strain Relief
