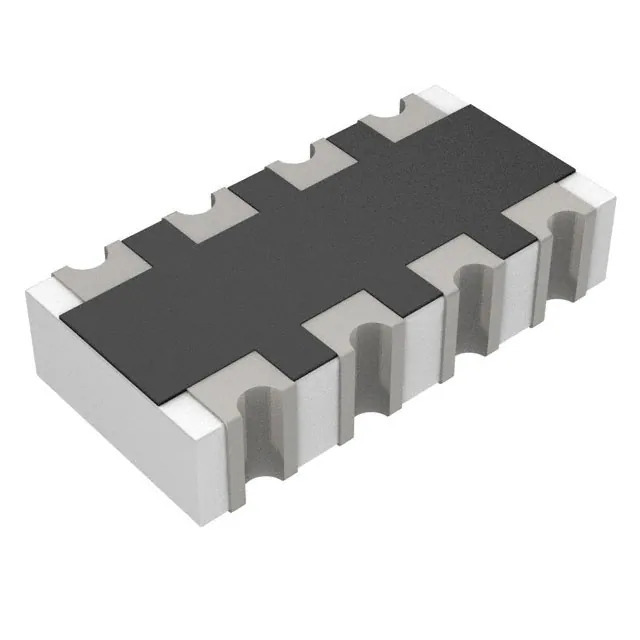

TC124-JR-0747RL Yageo
Same model may have multiple batches, images only for reference.

TC124-JR-0747RL

Part No TC124-JR-0747RL
Manufacturer Yageo
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 47 OHM 0804
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr YAGEO
Series TC124
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 47
Tolerance ±5%
Number of Resistors 4
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Automotive AEC-Q200, DDRAM, SDRAM
Mounting Type Surface Mount
Package / Case 0804, Concave, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.079" L x 0.039" W (2.00mm x 1.00mm)
Height - Seated (Max) 0.020" (0.50mm)
Base Product Number TC124-JR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1374013-TC124-JR-0747RL
Ultra Librarian 3D Model Ultra Librarian TC124-JR-0747RL CAD Model

Description

The YAGEO 1374013-TC124-JR-0747RL is a resistor network array with a resistance of 47 Ohms.

  • Resistance: 47 Ohms
  • Package: 0804
  • Terminals: Long Side
  • Operating Temperature: -55°C to 125°C
  • Tolerance: ±5%
  • Applications: Automotive, DDRAM, SDRAM
  • Series: TC124
  • Power Rating: 62.5mW per element
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • AEC-Q200: Compliant
  • REACH: Unaffected
