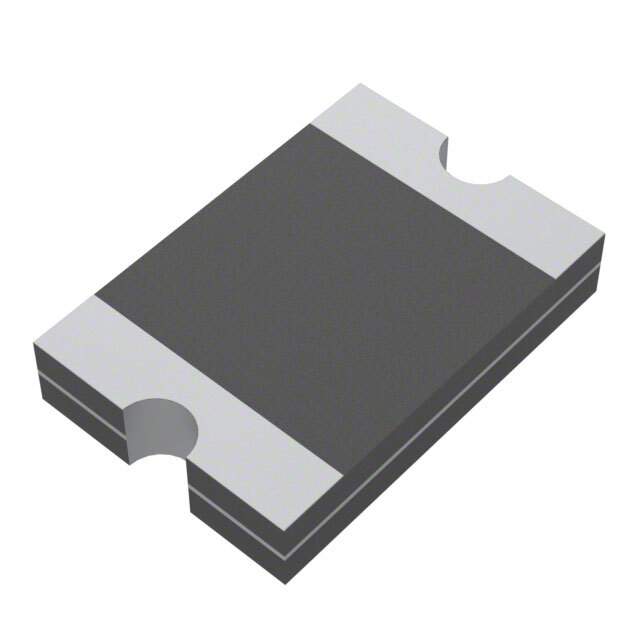

SMD1812B075TF/24 Real Image
Same model may have multiple batches, images only for reference.

SMD1812B075TF/24

Part No SMD1812B075TF/24
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC / Polymeric PTC Resettable Fuse 24V 750 mA Ih Surface Mount 1812 (4532 Metric), Concave
Datasheet
SMD1812B075TF/24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr YAGEO
Series SMD1812
Package Tape & Reel
Type Polymeric
Voltage - Max 24V
Current - Max 100 A
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Time to Trip 200 ms
Resistance - Initial (Ri) (Min) 100 mOhms
Resistance - Post Trip (R1) (Max) 290 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1812 (4532 Metric), Concave
Dimension 0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max) 0.061" (1.55mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names 13-SMD1812B075TF/24CT,13-SMD1812B075TF/24TR,13-SMD1812B075TF/24DKR
Standard Package 1,500
Win Source Part Number 1157095-SMD1812B075TF/24
Ultra Librarian 3D Model Ultra Librarian SMD1812B075TF/24 CAD Model

Description

The SMD1812B075TF/24 is a polymeric PTC resettable fuse designed for circuit protection.

  • Voltage Rating: 24 V
  • Maximum Current: 100 A
  • Current Hold (Ih): 750 mA
  • Current Trip (It): 1.5 A
  • Time to Trip: 200 ms
  • Initial Resistance (Ri): 100 mOhms
  • Post-Trip Resistance (R1): 290 mOhms
  • Packaging: Tape and Reel
  • Standard Package: 1,500
  • Package/Case: Concave, 0.179" L x 0.128" W (4.55mm x 3.24mm)
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Alternative Part: SMD1812B075TF24
