Same model may have multiple batches, images only for reference.

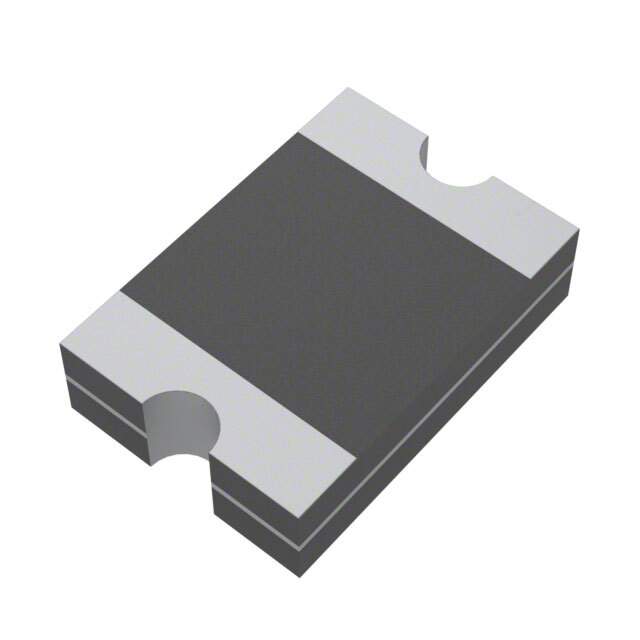

SMD1210B020TF Real Image
Same model may have multiple batches, images only for reference.

SMD1210B020TF

Part No SMD1210B020TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description PPTC SMD 1210, 30V 0.2A, REEL 7"  /  Polymeric PTC Resettable Fuse 30V 200 mA Ih Surface Mount 1210 (3225 Metric), Concave
Datasheet
SMD1210B020TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr YAGEO
Series SMD1210
Package Tape & Reel
Type Polymeric
Voltage - Max 30V
Current - Max 10 A
Current - Hold (Ih) (Max) 200 mA
Current - Trip (It) 400 mA
Time to Trip 20 ms
Resistance - Initial (Ri) (Min) 800 mOhms
Resistance - Post Trip (R1) (Max) 5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric), Concave
Dimension 0.127" L x 0.102" W (3.22mm x 2.58mm)
Thickness (Max) 0.039" (1.00mm)
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Other Names YAG6745CT,YAG6745DKR,YAG6745TR
Standard Package 4,000
Win Source Part Number 958564-SMD1210B020TF
Ultra Librarian 3D Model Ultra Librarian SMD1210B020TF CAD Model

Description

The SMD1210B020TF is a PTC resettable fuse designed for circuit protection.

  • Series: SMD1210
  • Package: Tape and Reel
  • Voltage: 30V
  • Current: 10A
  • Current Hold: 200mA
  • Current Trip: 400mA
  • Time to Trip: 20ms
  • Mounting Technology: SMD (SMT)
  • Package: 1210 (3225 Metric), Concave
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Manufacturer: YAGEO (contact for more info)
