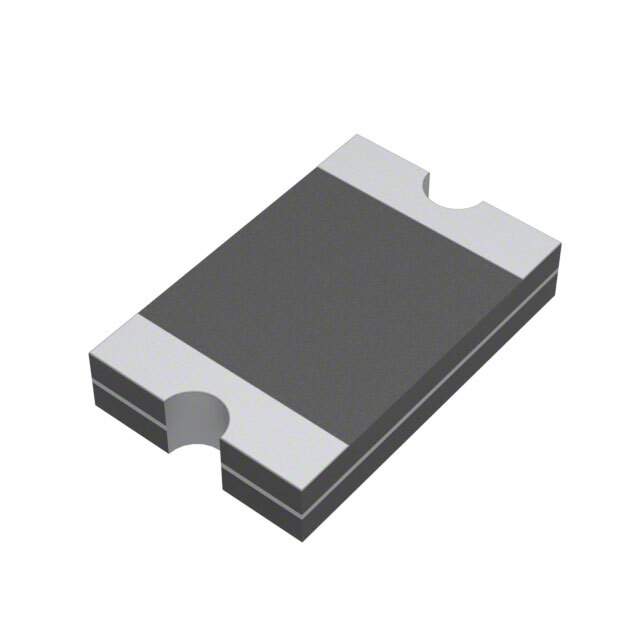

SMD0805B020TF Real Image1 SMD0805B020TF Real Image2
Same model may have multiple batches, images only for reference.
SMD0805B020TF Real Image1 SMD0805B020TF Real Image2
SMD0805B020TF Real Image1 SMD0805B020TF Real Image2
Same model may have multiple batches, images only for reference.

SMD0805B020TF

Part No SMD0805B020TF
Manufacturer Yageo
Catalog PTC Resettable Fuses
Description POLYMERIC PTC RESETTABLE FUSE SU / Polymeric PTC Resettable Fuse 9V 200 mA Ih Surface Mount 0805 (2012 Metric), Concave
Datasheet
SMD0805B020TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr YAGEO
Series SMD0805
Package Tape & Reel
Product Status Active
Type Polymeric
Voltage - Max 9V
Current - Hold (Ih) (Max) 200 mA
Current - Trip (It) 500 mA
Current - Max 100 A
Time to Trip 20 ms
Resistance - Initial (Ri) (Min) 650 mOhms
Resistance - Post Trip (R1) (Max) 3.5 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric), Concave
Size / Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Height - Seated (Max) -
Thickness (Max) 0.039" (1.00mm)
Lead Spacing -
Approval Agency cUL, TUV, UL
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1361645-SMD0805B020TF
Ultra Librarian 3D Model Ultra Librarian SMD0805B020TF CAD Model

Description

The YAGEO SMD0805B020TF PTC Resettable Fuse is a polymeric type circuit protection device. Bold the product name (e.g., BAV99S,135 → SMD0805B020TF) and manufacturer (e.g., Nexperia USA Inc. → YAGEO).

  • Temperature Range: -40°C to 85°C
  • Current Rating: 100A
  • Maximum Voltage: 9V
  • Time to Trip: 20ms
  • Resistance (Initial): 650 mOhms
  • Resistance (Post-Trip): 3.5 Ohms
  • Mounting: Surface Mountable
  • Package: 0805 (2012 Metric), Concave
  • Approvals: cUL, TUV, UL
  • Size: 0.083" L x 0.053" W (2.10mm x 1.35mm)
  • Thickness: 0.039" (1.00mm)
