Same model may have multiple batches, images only for reference.

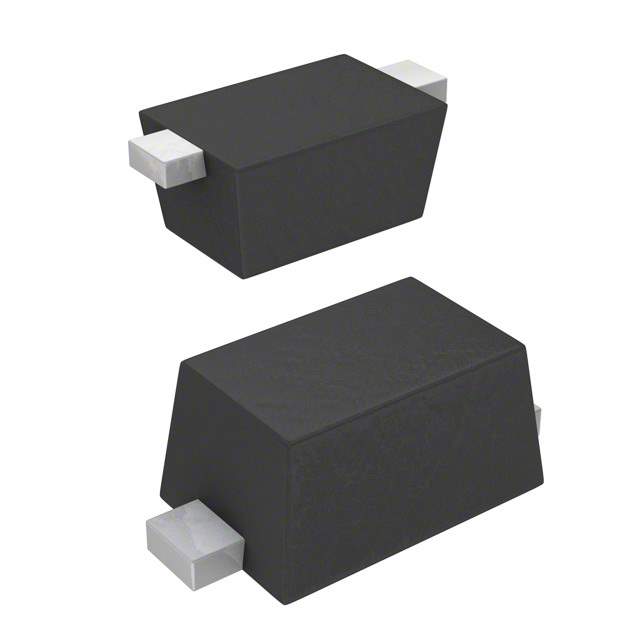

SBD52C05L01 Real Image
Same model may have multiple batches, images only for reference.

SBD52C05L01

Part No SBD52C05L01
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.8VC SOD523
Datasheet
SBD52C05L01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 39 Weeks
Features 9.8V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523
Manufacturer Yageo
Series SBD52C05L01
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package SC-79, SOD-523
Case / Package SOD-523
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 13-SBD52C05L01DKR, 13-SBD52C05L01CT, 13-SBD52C05L01TR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 893639-SBD52C05L01
Ultra Librarian 3D Model Ultra Librarian SBD52C05L01 CAD Model

Description

The Yageo SBD52C05L01 is a surface mount TVS diode that has a 9.8V clamp and a 1A (8/20µs) Ipp. The device is packaged in a SC-79, SOD-523 package and is designed to operate at an operating temperature range of -55°C to 150°C.
