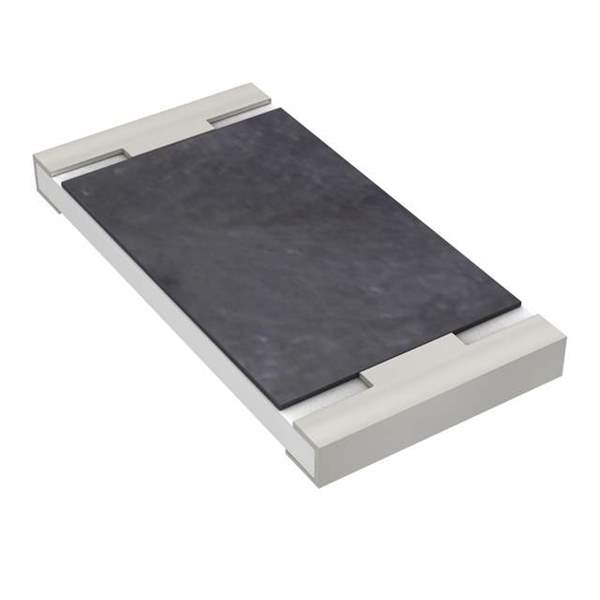

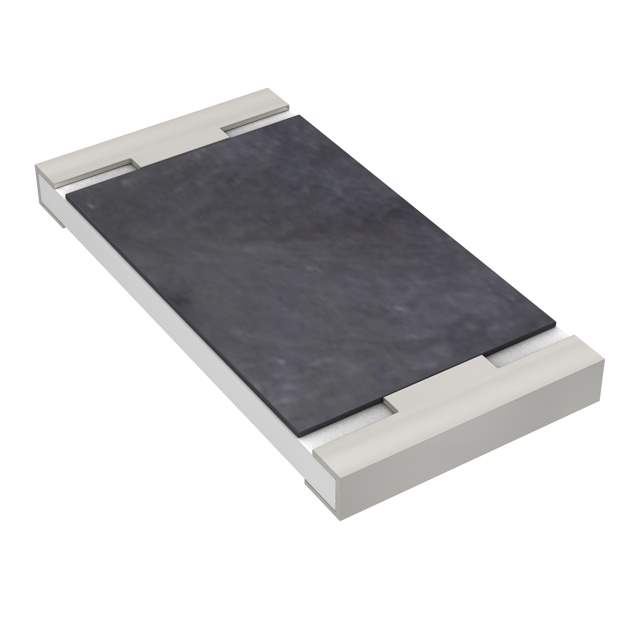

The RC2512JK-0747RL is a thick film chip resistor manufactured by Yageo. It's a part of their RC series, which is known for its good performance and suitability in various electronic applications. The '2512' denotes the resistor's physical dimensions, 'JK' indicates tolerance and temperature coefficient characteristics, and '47RL' specifies its resistance value.

Applications

• Current Sensing: Monitors current levels in electronic circuits.
• Voltage Division: Creates specific voltage levels using a resistor network.
• Load Resistors: Provides a defined load for a circuit.
• Filtering: Used in circuits to filter out unwanted frequencies.
• General Purpose: Suitable for many general electronic circuits that need a stable resistance.

Features

• Thick Film Resistor
• 2512 Package Size
• 5% Tolerance
• ±200 ppm/°C Temperature Coefficient (TCR)
• RoHS Compliant
• Surface Mount Technology (SMT)
• High Reliability

Benefits

• Stable Resistance: Provides a predictable resistance value in circuits.
• SMT Compatibility: Can be easily assembled using automated SMT processes.
• RoHS Compliance: Environmentally friendly due to the absence of hazardous substances.
• Cost-Effective: Provides a good balance of performance and cost.
• Wide Operating Temperature: Can operate within a broad temperature range.
• Durable: Offers long-term stability and reliability.
• Versatile: Suitable for a wide range of applications.

Additional Details

The RC2512JK-0747RL has a resistance value of 47 ohms. It typically has a power rating of 1W. The operating temperature range is generally between -55°C to +155°C. The terminations are usually made of nickel and tin plating. The ceramic body houses the thick film resistive element. This resistor is designed for surface mount assembly. The 5% tolerance makes it suitable for applications where high precision is not critical, providing a cost-effective solution for general purpose resistance requirements. The component is widely used in consumer electronics, industrial equipment, and automotive applications.
