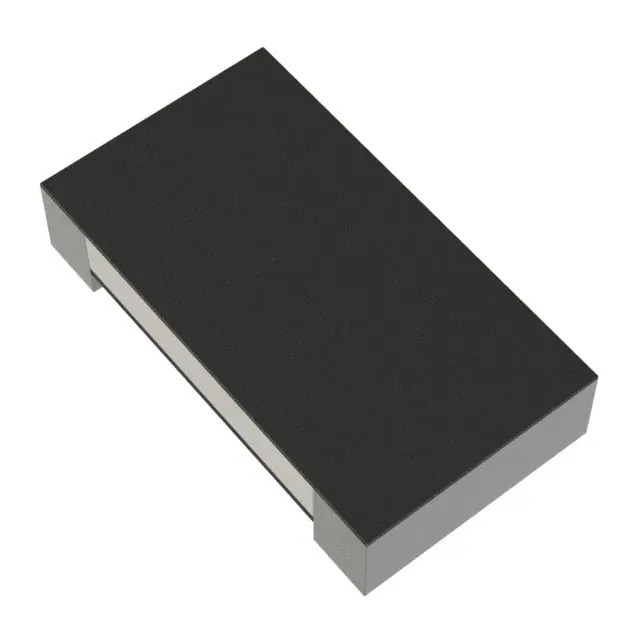

PA0805FRE470R02L Yageo
Same model may have multiple batches, images only for reference.

PA0805FRE470R02L

Part No PA0805FRE470R02L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 1% 1/2W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr YAGEO
Series PA
Package Tape & Reel
Product Status Active
Resistance 20 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Ratings AEC-Q200
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.018" (0.45mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375379-PA0805FRE470R02L
Ultra Librarian 3D Model Ultra Librarian PA0805FRE470R02L CAD Model

Description

The PA0805FRE470R02L is a chip resistor from YAGEO.

  • Mounting Type: Surface Mount
  • Resistance: 20 mOhms
  • Power (Watts): 0.5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Application: Automotive
  • Features: AEC-Q200, Moisture Resistant
  • Operating Temperature: -55°C to 155°C
  • Packaging: Tape & Reel (TR)
  • Size / Dimension: 0.080" L x 0.050" W (2.03mm x 1.27mm)
  • Number of Terminations: 2
  • Height - Seated (Max): 0.018" (0.45mm)
